Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the turbo manifold module.

    (Refer to " TURBO MANIFOLD MODULE  ")

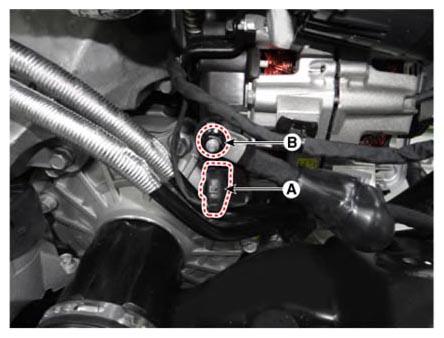

  3. Disconnect the alternator connector (A), and remove the cable (B) from alternator "B" terminal.
    G12803636Courtesy of KIA MOTORS AMERICA, INC.

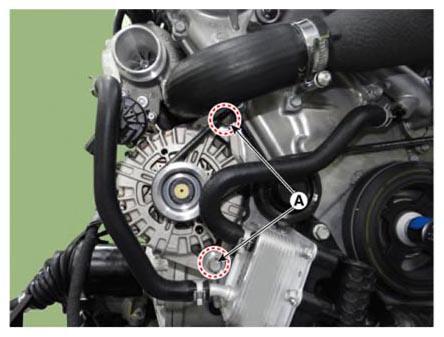

  4. Remove the alternator bolts (A).
    G12803637Courtesy of KIA MOTORS AMERICA, INC.

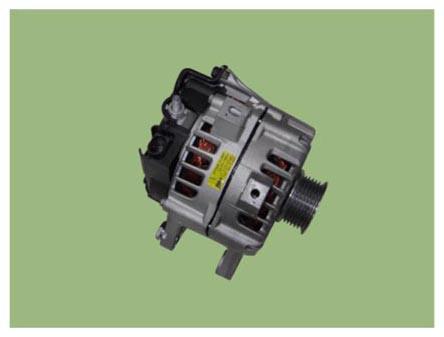

    G12803638Courtesy of KIA MOTORS AMERICA, INC.
