[Bank 1/Exhaust]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the cylinder head cover.

    (Refer to Engine Mechanical System - " CYLINDER HEAD COVER  ")

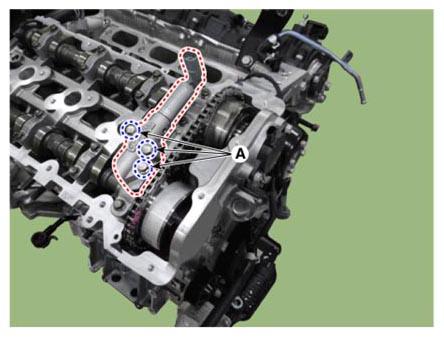

  3. Remove the installation bolt (A), and then remove the valve from the engine.
    G12803570Courtesy of KIA MOTORS AMERICA, INC.
