Repair Procedures: Removal

  1. Disconnect the negative battery cable and wait for at least thirty seconds before beginning to work.
  2. Disconnect the front impact sensor connector (A).
    G12791561Courtesy of KIA MOTORS AMERICA, INC.

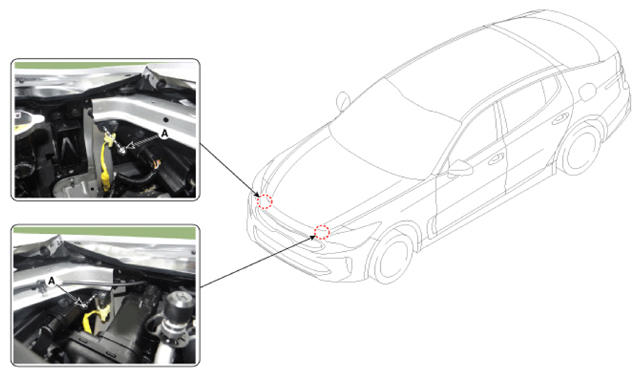

  3. Remove the front impact sensor mounting bolt (A).
G12791562Courtesy of KIA MOTORS AMERICA, INC.
