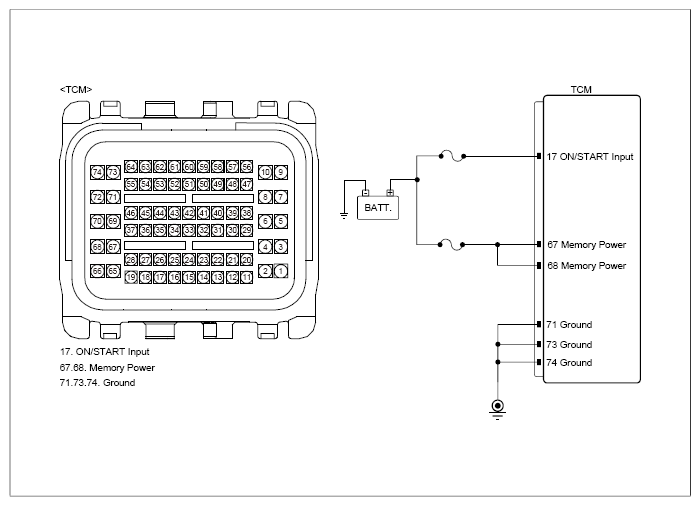

Module Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
TCM harness connector | 67, 68 (Memory Power) | Chassis ground | - | Approx. 12V |
|
TCM harness connector | 17 (On/Start Power) | Chassis Ground | - | Approx. 12V |
|
TCM harness connector | 71, 73, 74 (Ground) | Chassis Ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
