Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.

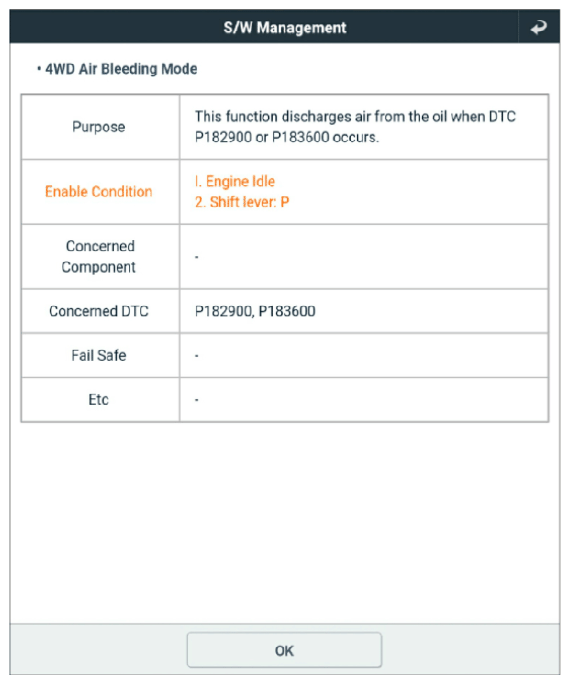

- Perform "Air Bleeding Mode" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Figures below |
CAUTION:
This is the function to discharge the air inside the oil.

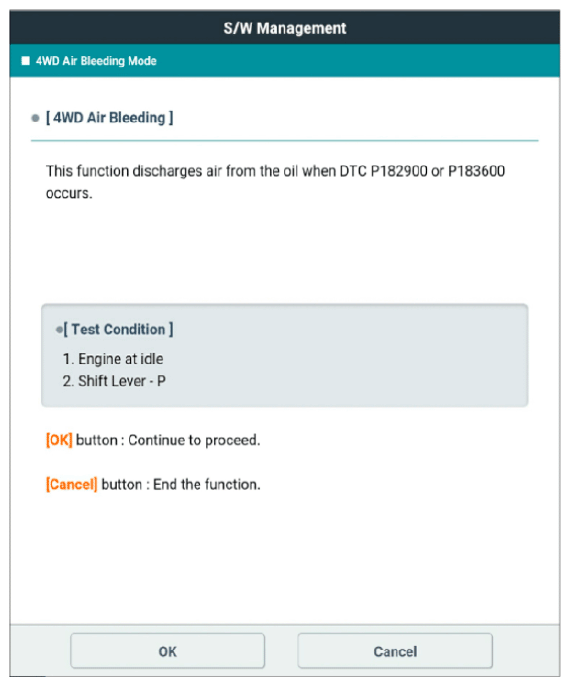

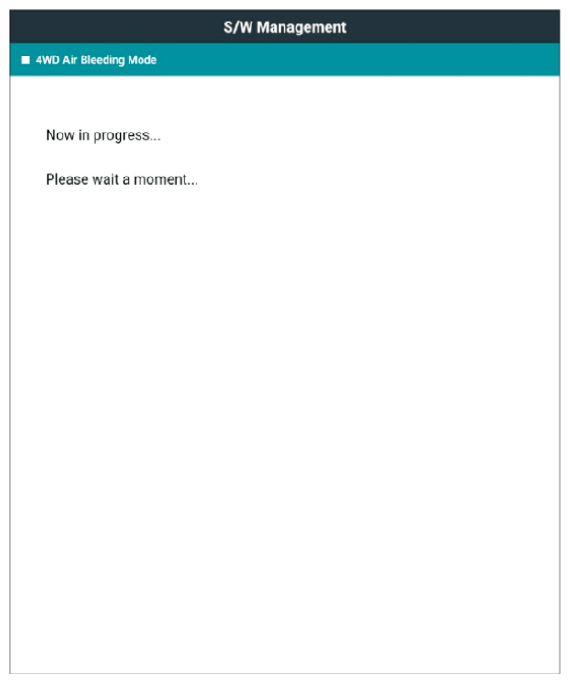

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.

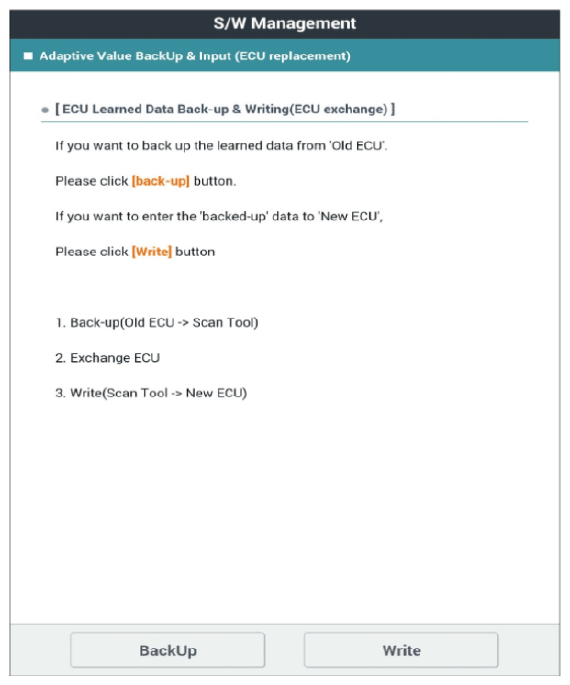

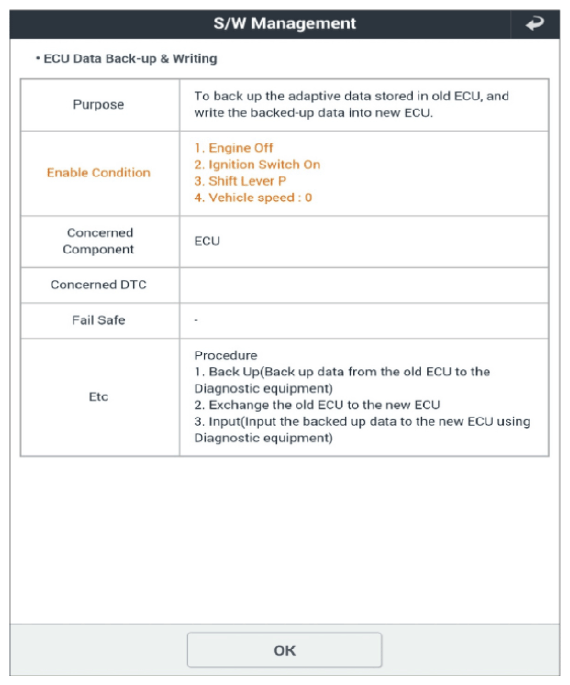

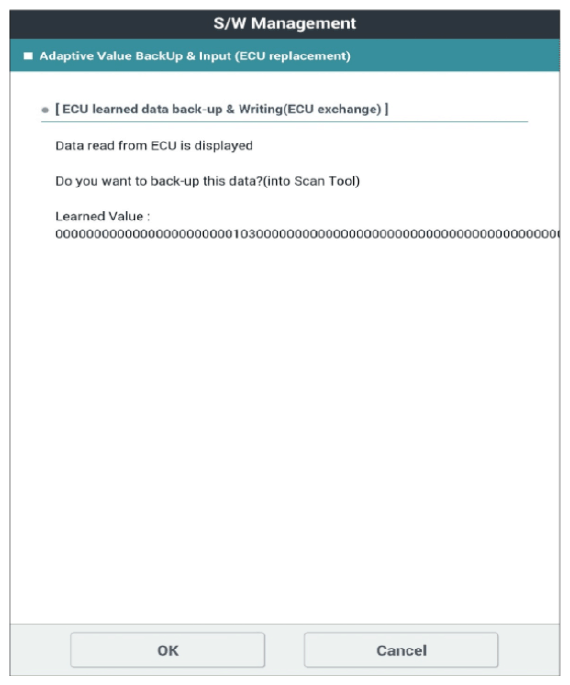

- Perform "Adaptive Value BackUp & Input (ECU replacement)" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Figures below |
CAUTION:
Perform the following procedure when replacing the ECU.

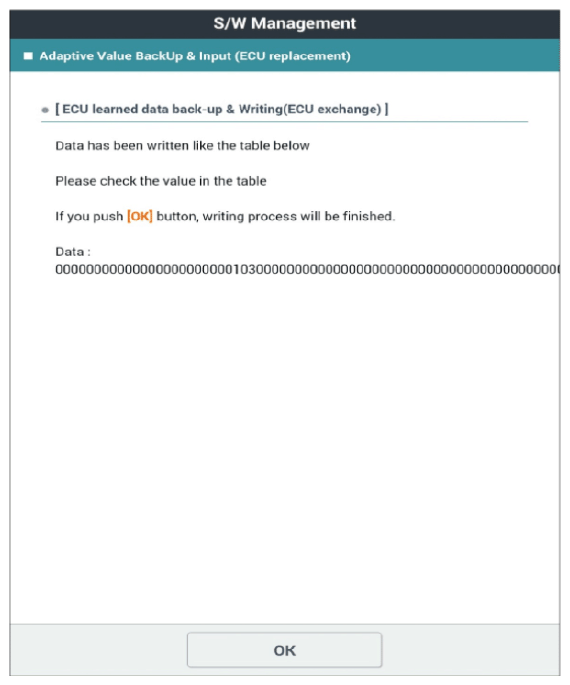

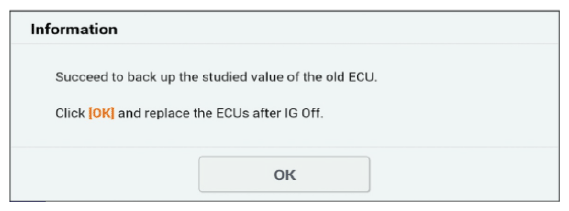

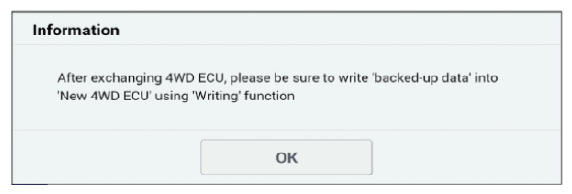

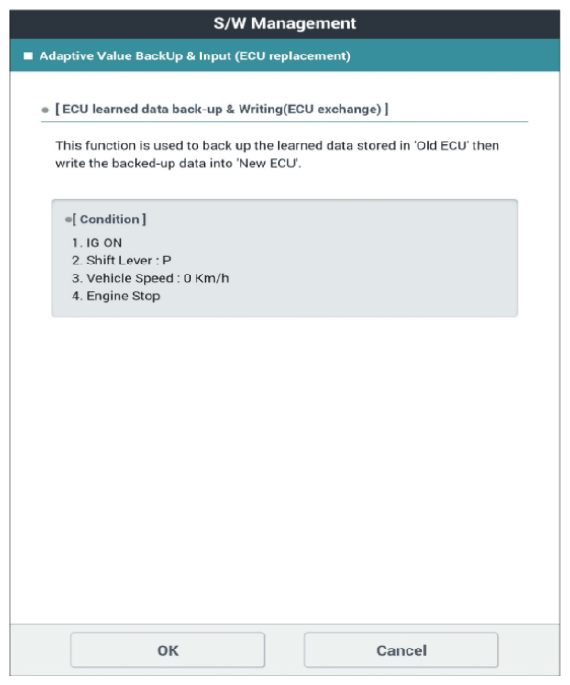

 Courtesy of KIA MOTORS AMERICA, INC.
|

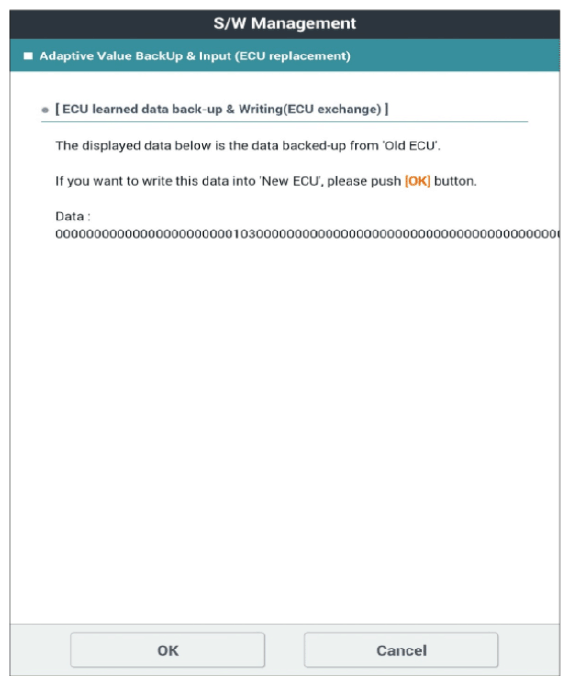

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to Data Link Connector (DLC).
- Select the menu "Vehicle S/W Management" with KDS.

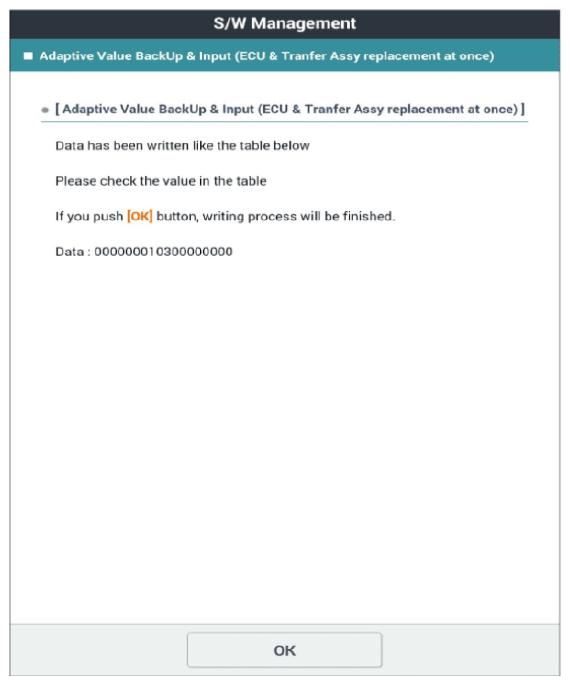

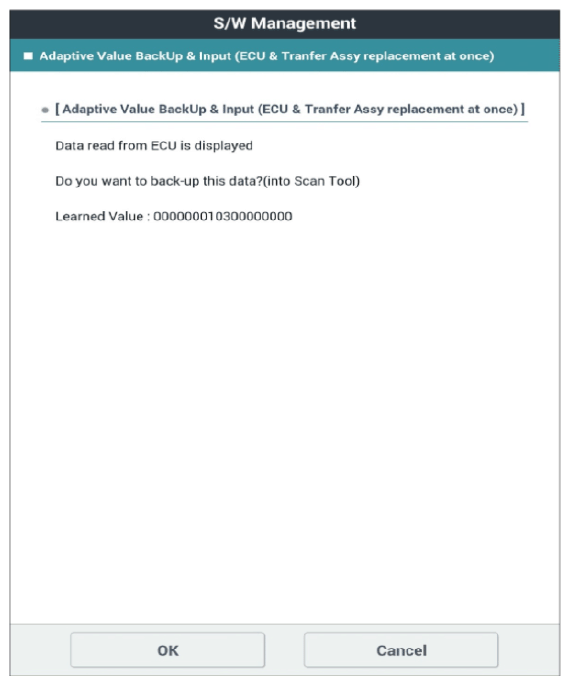

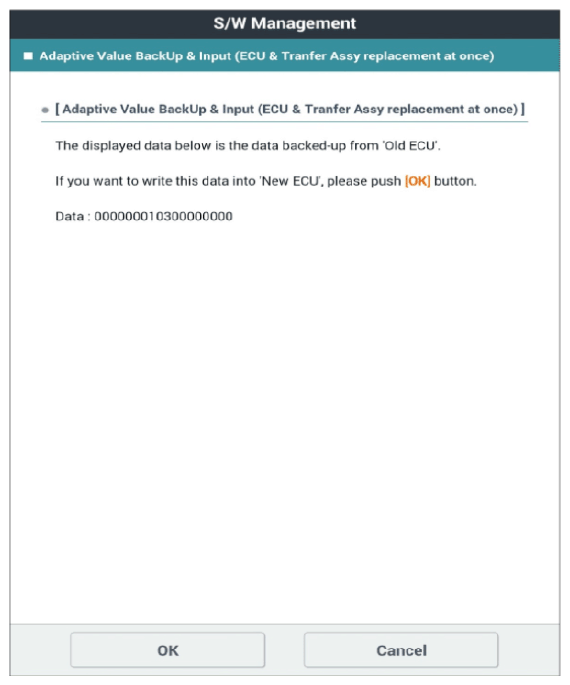

- Perform "Adaptive Value BackUp & Input (ECU & Transfer Assy replacement at once)" in "Vehicle S/W Management" with KDS.
- After this procedure, go to "VERIFICATION OF REPAIR " procedure.
|
Figures below |
CAUTION:
Perform the following procedure when replacing the ECU & Transfer Assy at the same time.

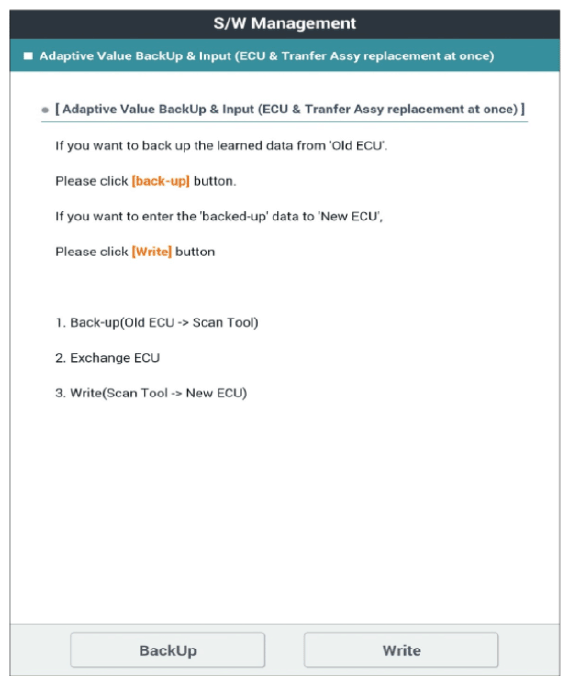

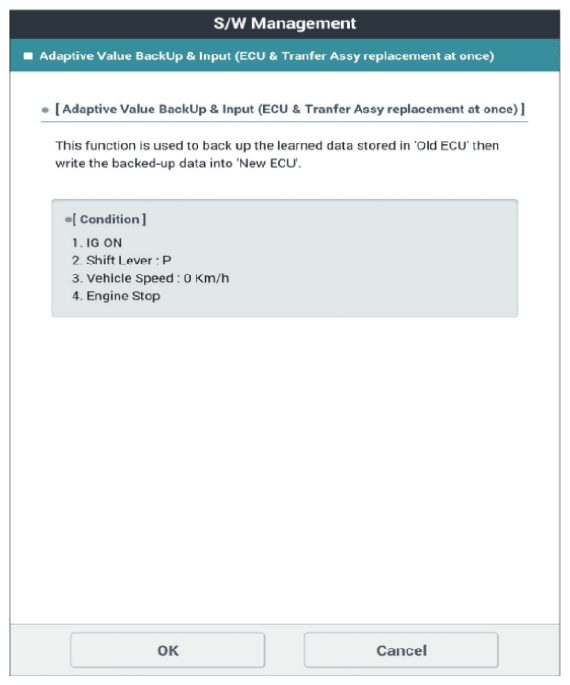

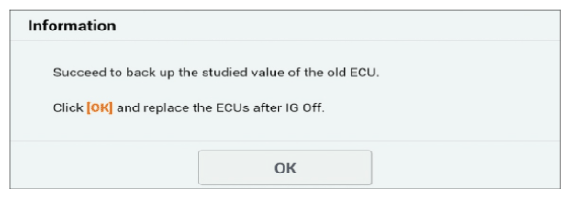

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
