Removal And Installation

WARNING: This page is about a different variant/trim than selected.

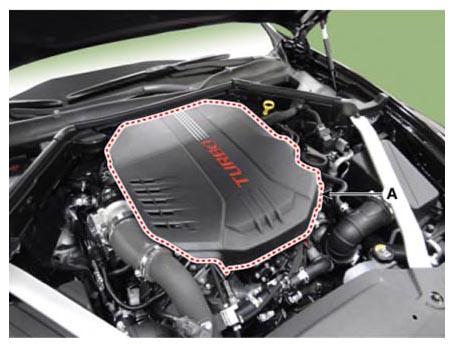

  1. Remove the engine cover (A).
    G12802934Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Lift up the lower end of engine cover, then left and right alternately.
    • When installing, check that the mounting rubber insulators are installed.
  2. Install in the reverse order of removal.
