Home >> Kia >> 2019 >> Stinger Base, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 3.3L (2 Of 9) >> DTC P0112-00: Intake Air Temperature Sensor1 Circuit Low Input >> DTC Inspection >> Monitor DTC Status

Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

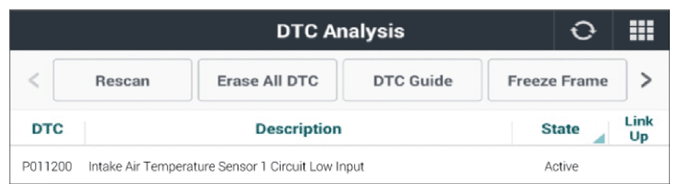

 Figure below.
G12787492Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
