Components And Components Location: Components

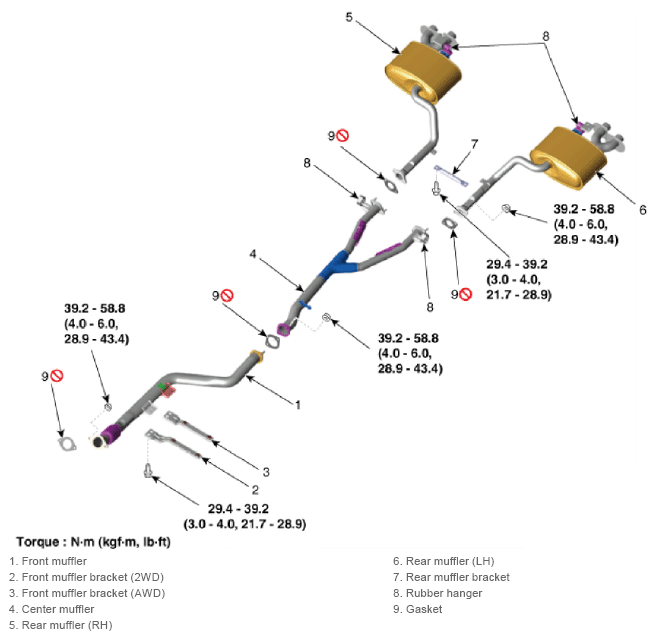

Fig 1: Muffler Components Location With Torque Specification

G12791844

Courtesy of KIA MOTORS AMERICA, INC.
