Home >> Kia >> 2019 >> Stinger Base, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.0L >> Intercooler >> Components And Components Location >> Components

Components And Components Location: Components

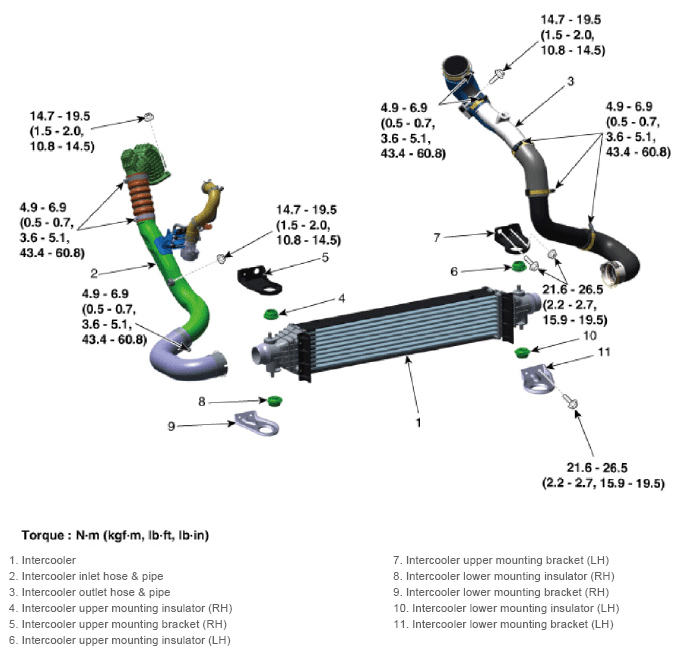

Fig 1: Intercooler Components Location With Torque Specification

G12791779

Courtesy of KIA MOTORS AMERICA, INC.
