Removal And Installation

Disconnect the negative battery terminal.
Remove the engine room front under cover.
(Refer to " ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to " COOLANT ")
Remove the engine cover.
(Refer to " ENGINE COVER ")

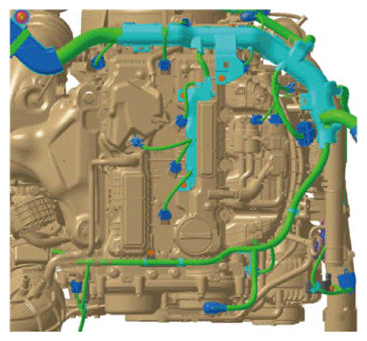

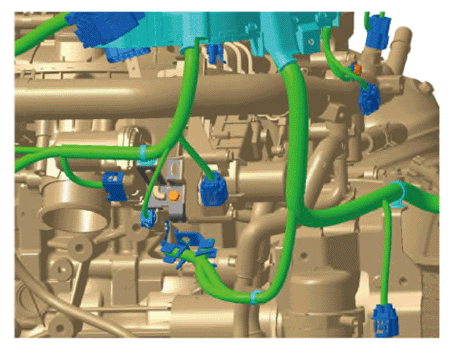

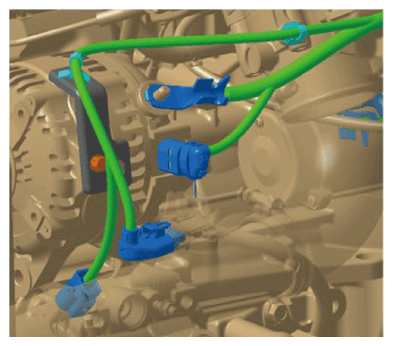

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the intake manifold.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

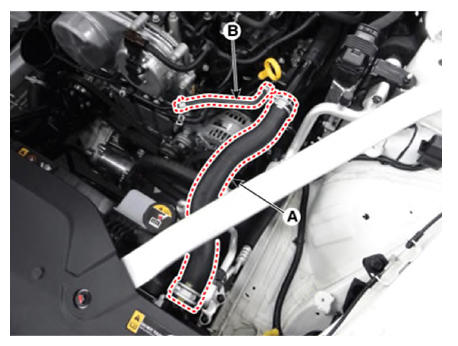

Disconnect the radiator upper hose (A) and water hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

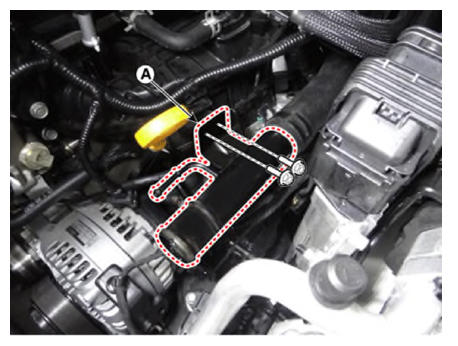

Remove the water outlet pipe assembly (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

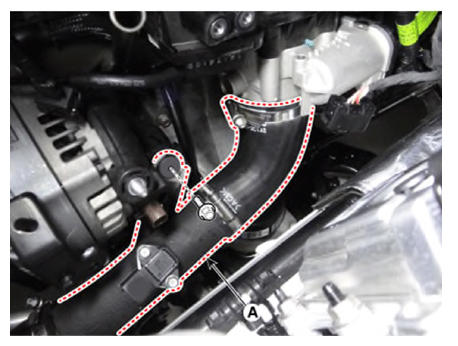

Remove the intercooler outlet hose & pipe assembly (A).
Tightening torque:

Hose clamp:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Bolt:

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

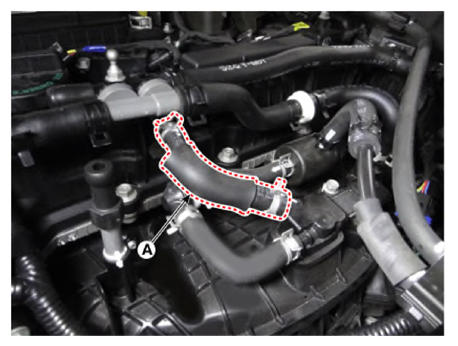

Disconnect the positive crankcase ventilation (PCV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

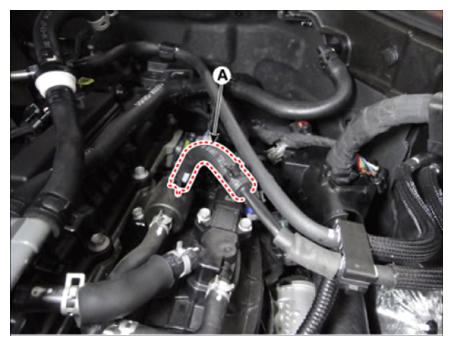

Disconnect the purge control solenoid valve (PCSV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

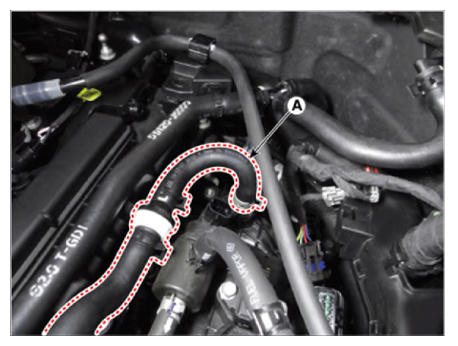

Disconnect the vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator.
(Refer to " ALTERNATOR ")
Unfasten the electric throttle body control (ETC) module bolts.
(Refer to " ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")
Remove the oil level pipe.
(Refer to " OIL LEVEL GAUGE & PIPE ")

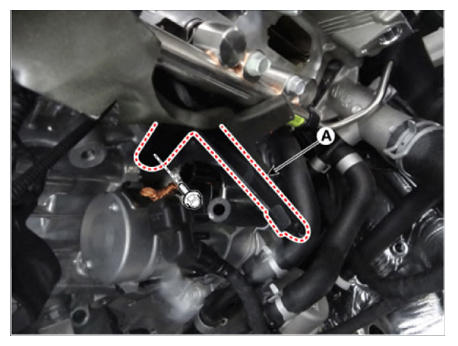

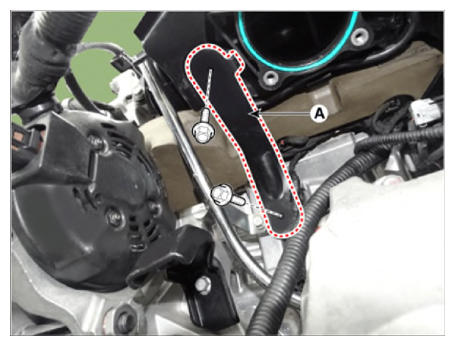

Remove the intake manifold stay (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

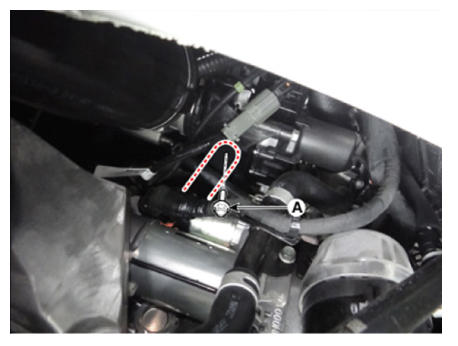

Remove the intake manifold stay bolt (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

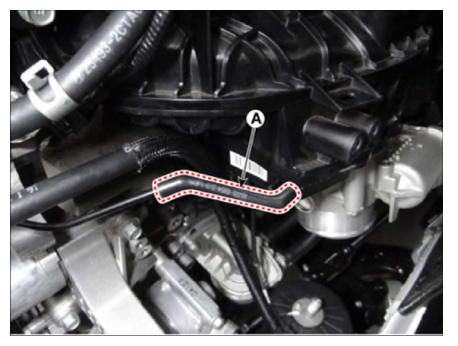

Disconnect the vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

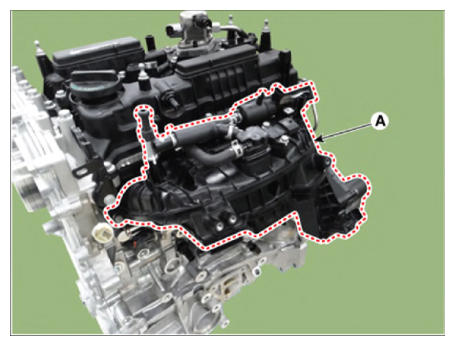

Remove the intake manifold (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold stay (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

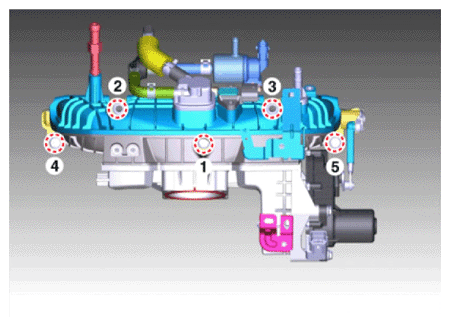

Fig 1: Intake Manifold Bolts And Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: After replacing the intake manifold, be sure to delete the previous VCMA adaptive value by performing the "resetting adaptive values" procedure using KDS.
(Refer to "ADJUSTMENT ")
