Repair Procedures: Replacement

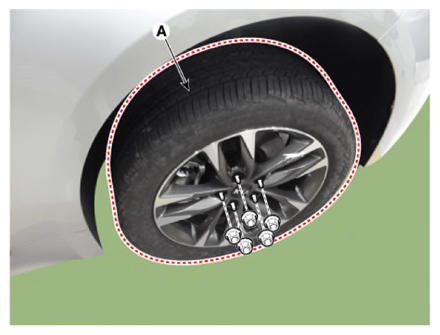

Remove wheel nuts, rear wheel and tire (A) from rear hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the wheel nuts when removing the rear wheel and tire (A).
Remove the rear brake caliper.
(Refer to Brake System - " REAR DISC BRAKE ")

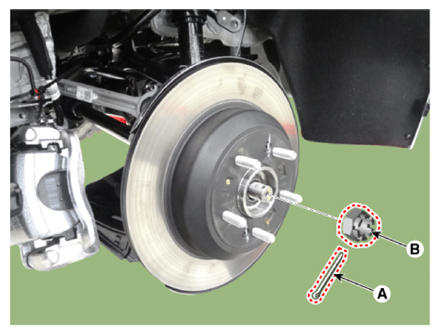

Remove the split pin (A) and hub nut (B).

Courtesy of KIA MOTORS AMERICA, INC.

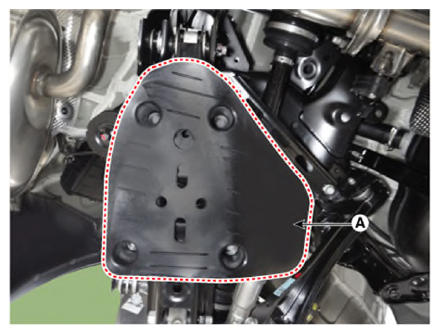

Remove the rear lower arm cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

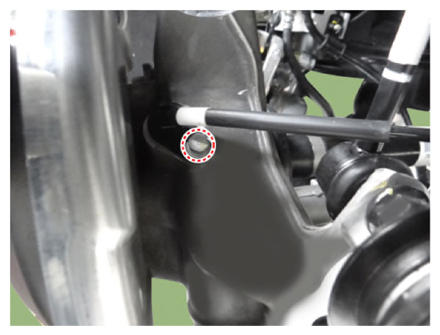

Remove the wheel speed sensor.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

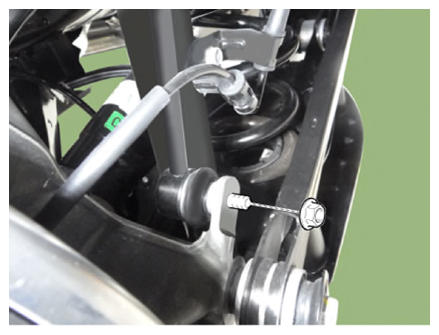

Loosen the stabilizer link nut and then separate the rear axle.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Up the transmission jack under the lower arm in order to remove the stabilizer link in no-load condition.

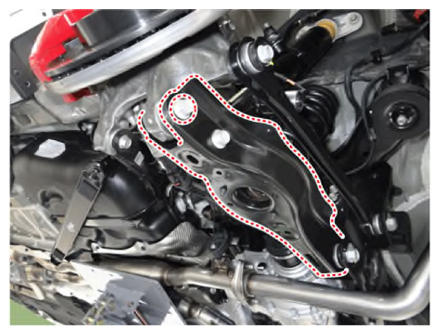

Loosen the rear lower arm bolt & nut and then separate the rear lower arm from the rear axle.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

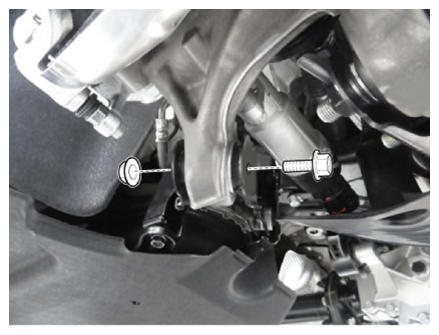

Loosen the nut & bolt and then separate the trailing arm from the rear axle.
Tightening torque:

117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

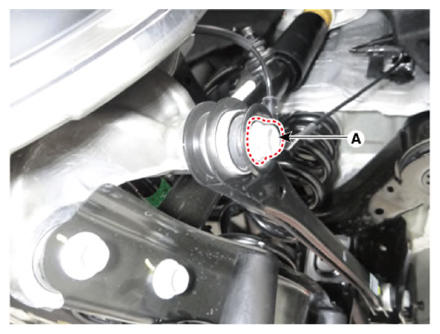

Loosen the bolt (A) and then separate the rear assist arm from the rear axle.
Tightening torque:

117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

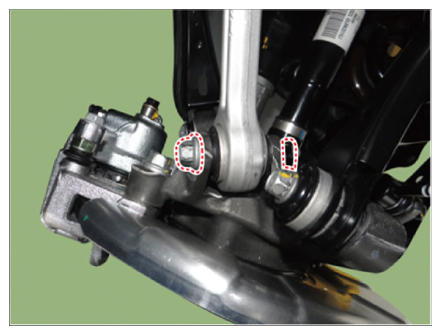

Loosen the bolt & nut and then remove the rear upper arm rear from the rear axle.
Tightening torque:

117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

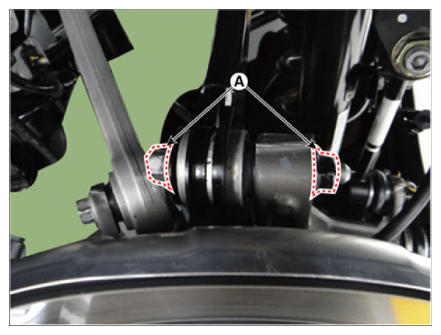

Loosen the rear upper arm rear bolt & nut (A) and then separate the rear upper arm rear.
Tightening torque:

117.7 - 132.4 N.m (12.0 - 13.5 kgf.m, 86.8 - 97.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Separate the rear drive shaft from the knuckle.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Use plastic hammer to avoid damaging on axle when the drive shaft is disassembled.
- Do not pull or twist excessively to remove the axle when the drive shaft is disassembled.

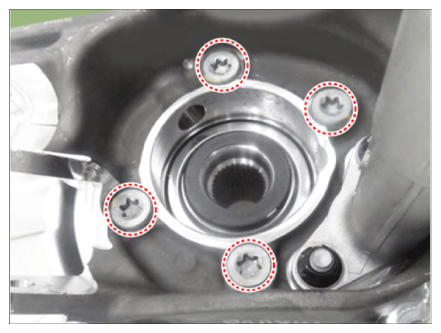

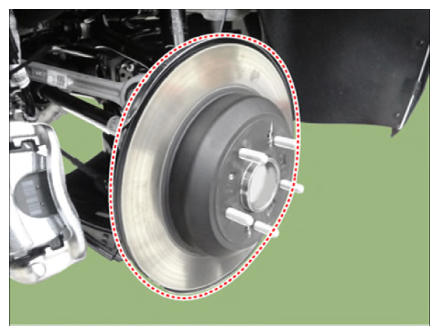

Loosen the bolts and then remove the rear hub assembly.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the rear alignment.
(Refer to Suspension System - " ALIGNMENT ")
