Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - " FRONT SEAT ASSEMBLY ")

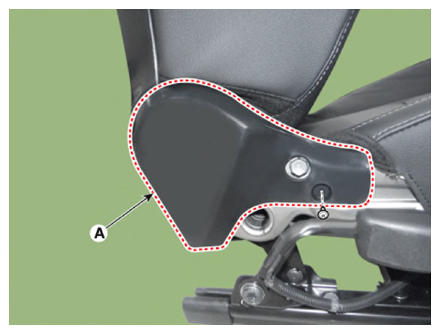

Remove the front seat shield inner cover (A) after loosening the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damage clips.
