Navigation (GPS/SD Card)

  1. 1. System features/Misdiagnose cases
    Inspection Description
    (1) System features
    1. Displays map using GPS/DR system, calculating GPS signal and vehicle speed
      1. Possible reception issue in poor reception area
      2. Additional wait time required after battery re-connection
    (2) Misdiagnose cases
    1. Black Box related: GPS reception issue from black box noise
    2. Cluster speed and navigation speed: It may vary (Design spec)
    3. Set Navigation display "North" will lock display of direction
    4. No SXM reception due to environmental issue: Buildings, Tower turn-table parking lot
  2. 2. No GPS Reception/Inaccurate current location
    Issue Inspection Description
    Reception/Inaccurate current location (1) Duplicate issue
    • Duplicate using AVN
    • GPS reception on Engineering Mode
    G12792606G12792607G12792608G12792609G12792610G12792611Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. 1. Duplicate issue
      1. Compass icon is activated (Normal: Red compass color)
      2. Correct current location

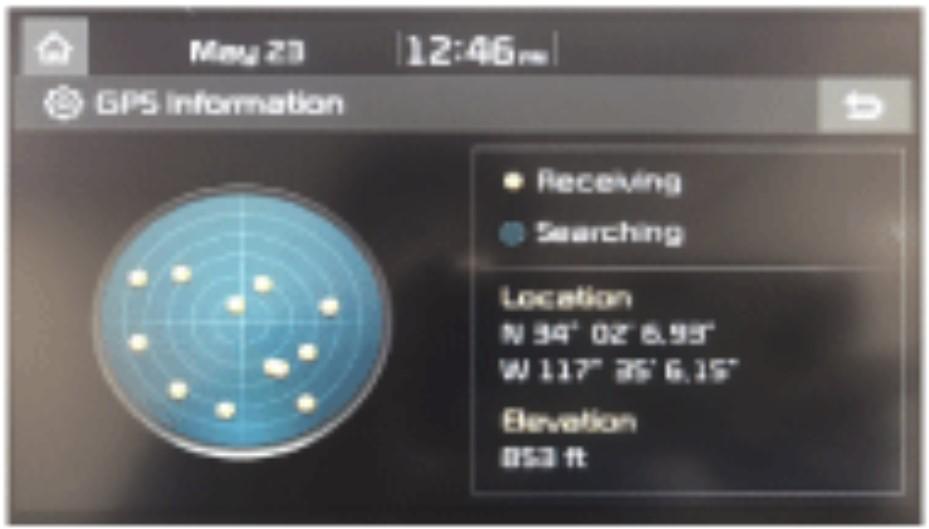

      Fig 1: Screen Display - Compass Icon Activated (Normal; Red Compass Color)
      G12792607Courtesy of KIA MOTORS AMERICA, INC.
    2. GPS activated

      (Normal: 3 or more yellow "Receive" icon)

      Fig 2: Screen Display - GPS Activated
      G12792608Courtesy of KIA MOTORS AMERICA, INC.

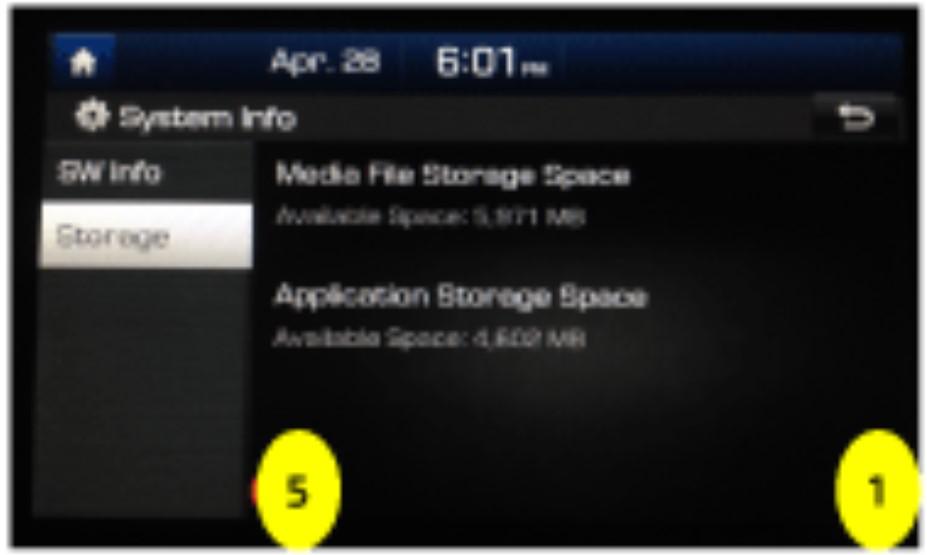

      1. 3-1. Enter Engineering Mode

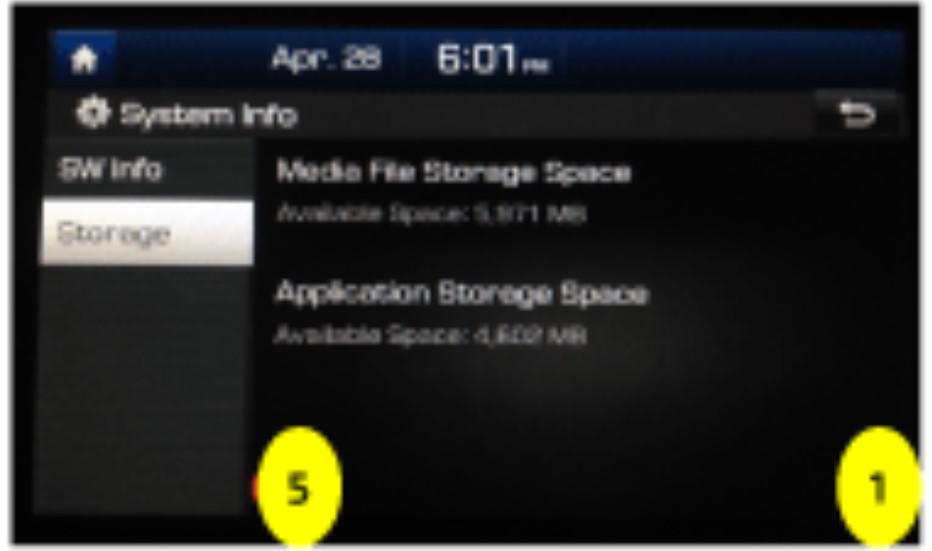

        1. Menu > Settings > System Info > Storage or SW Info > Touch left bottom 5 times, right bottom 1 time
        Fig 3: Screen Display - Enter Engineering Mode
        G12792609Courtesy of KIA MOTORS AMERICA, INC.

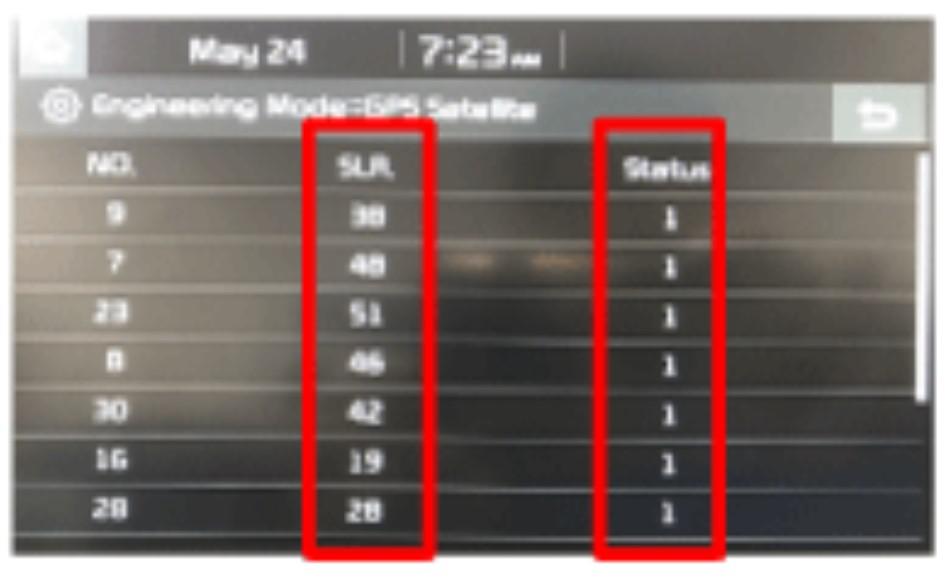

      2. 3-2. DR information at Engineering mode

        (Normal: 3 or more STATUS 1, SNR 40 or above)

      Fig 4: Screen Display - DR Information At Engineering Mode
      G12792610Courtesy of KIA MOTORS AMERICA, INC.

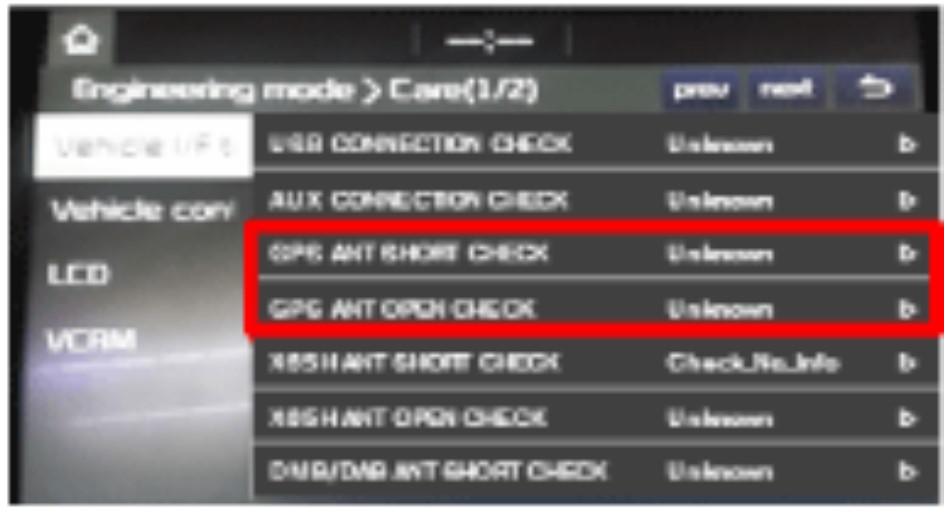

    3. Antenna connection at Engineering mode
      1. Engineering mode → Care → Vehicle I/F diagnose

        → GPS ANT SHORT/OPEN

        (Normal: NOT SHORT, NOT OPEN)

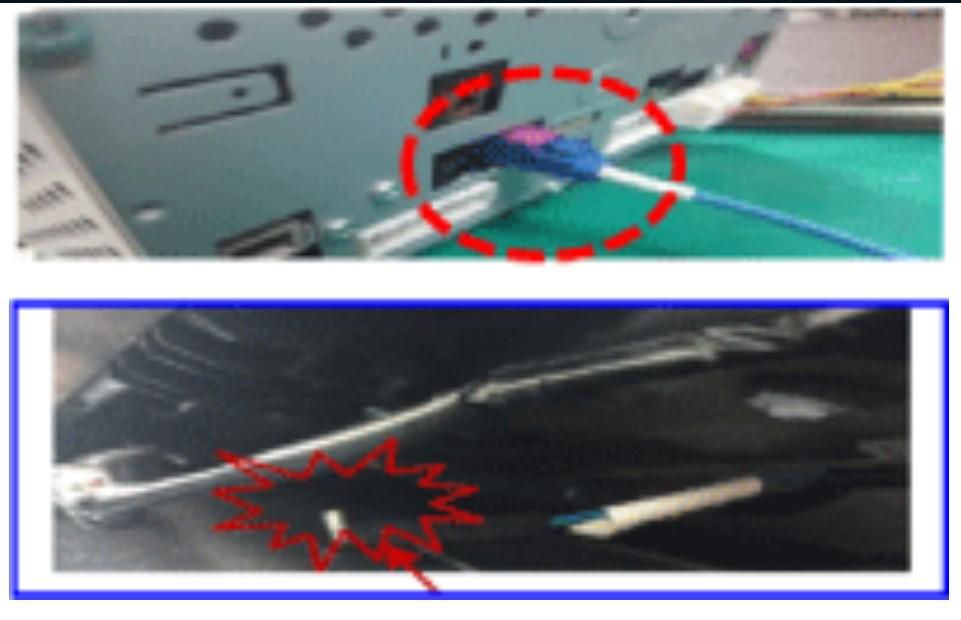

      Fig 5: Screen Display - Antenna Connection At Engineering Mode
      G12792611Courtesy of KIA MOTORS AMERICA, INC.
    4. If connection is "Open", check cable connection
      1. AVN connector
      2. Antenna connection
      3. Cable connection

    Move to good reception area and re-test (Poor reception area)
    → Proceed with below step if this issue continues
  3. 2. GPS reception/Incorrect current location
    Issue Inspection Description
    No GPS reception/Inaccurate current location (1) Duplicate issue
    • Duplicate using AVN
    • GPS reception on Engineering Mode
    G12792612G12792613G12792614G12792615Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Duplicate issue
      1. Compass icon is activated (Normal: Red compass color)
      2. Check if map displays current location

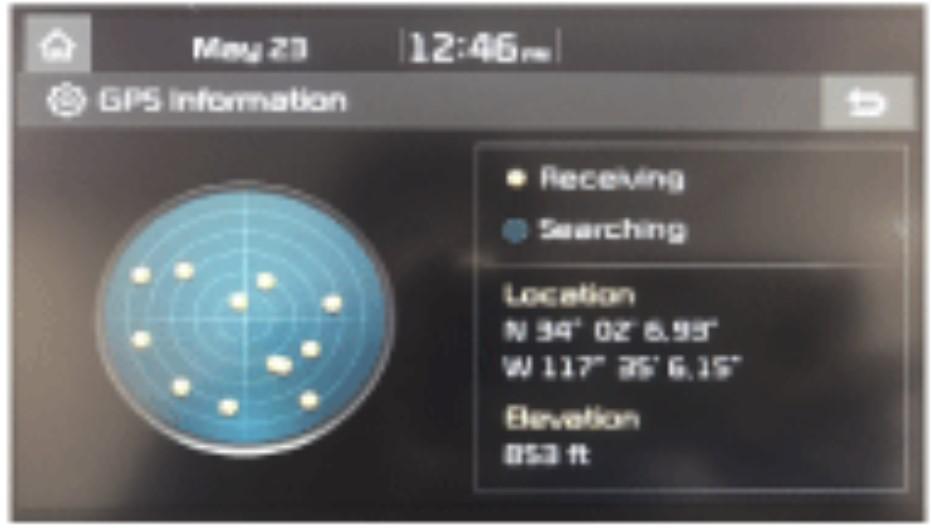

      Fig 6: Screen Display - Compass Icon Activated (Normal; Red Compass Color)
      G12792613Courtesy of KIA MOTORS AMERICA, INC.
    2. GPS activated

      (Normal: 3 or more yellow "Receive" icon)

      Fig 7: Screen Display - GPS Activated (1 Of 2)
      G12792614Courtesy of KIA MOTORS AMERICA, INC.

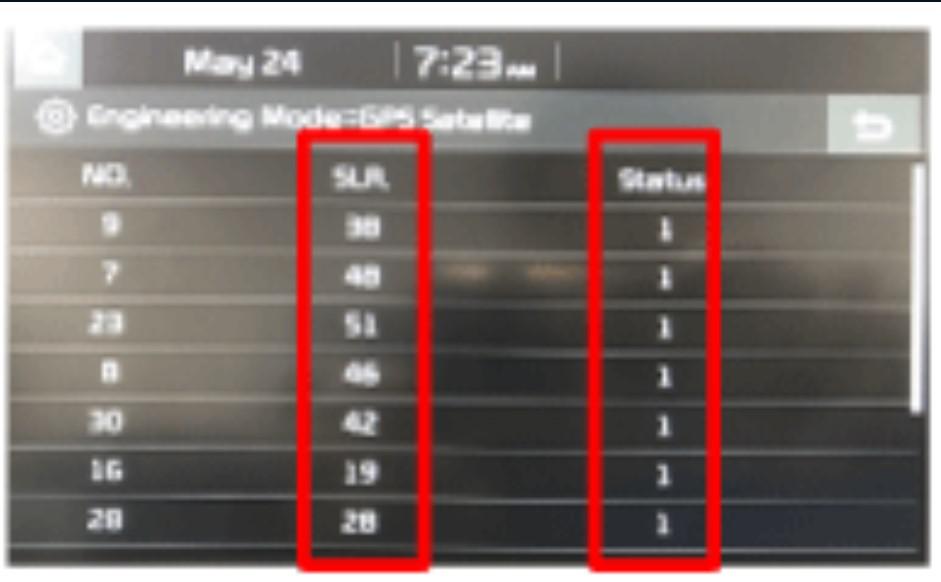

      Fig 8: Screen Display - GPS Activated (2 Of 2)
      G12792615Courtesy of KIA MOTORS AMERICA, INC.
    3. Check DR at En
      1. Engineering mode > Module info > Navi engineering mode

    (Normal: 3 or more STATUS 1, SNR 40 or above)
    Move to good reception area and re-test (Poor reception area)
    → Proceed with below step if issue continues
    No GPS reception/Inaccurate current location (2) External/Environmental issue
    • Black box
    • Cable connection
    G12792616G12792617G12792618Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Black box related issue
      1. Remove power on black box and reconnect

        (Many cases with GPS reception issue due to black box power)

      Fig 9: Screen Display - GPS Reception Issue To Black Box Power (1 Of 2)
      G12792617Courtesy of KIA MOTORS AMERICA, INC.
      Fig 10: Screen Display - GPS Reception Issue To Black Box Power (2 Of 2)
      G12792618Courtesy of KIA MOTORS AMERICA, INC.
    2. Antenna connection status on Engineering mode

      (Antenna ↔ AVN connection cable)

      1. Remove power on black box and reconnect

        (Many cases with GPS reception issue due to black box power)

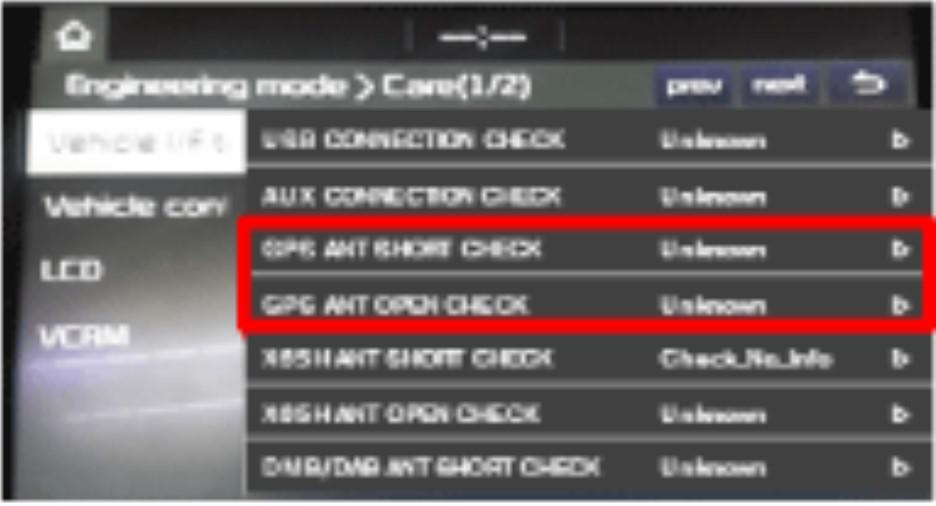

      2. Engineering mode → Care → I/F → GPS ANT SHORT/OPEN

        (Normal: NOT SHORT, NOT OPEN)
  4. 2. No GPS Reception/Inaccurate current location
    Issue Inspection Description
    No GPS reception/Inaccurate current location (1) Duplicate issue
    • Duplicate using AVN
    • GPS reception on Engineering Mode
    G12792619G12792620Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Compass is activated

      (Normal: Display 3 or more)

      Fig 11: Screen Display - GPS Reception On Engineering Mode
      G12792620Courtesy of KIA MOTORS AMERICA, INC.

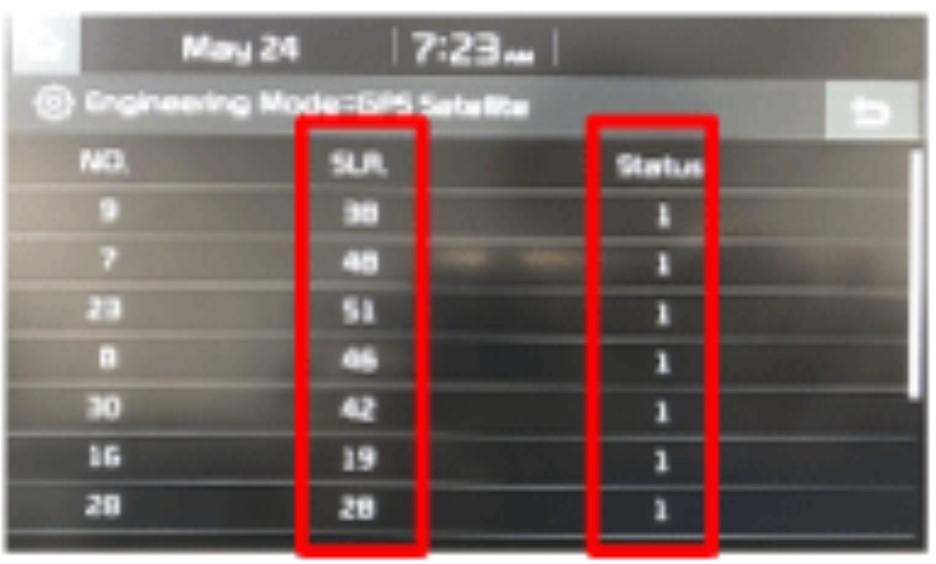

    2. Check DR at Engineering mode

      (Normal: 3 or more STATUS 1, SNR 40 or above)

    3. Check current location

      → If reception is good, proceed with drive test to duplicate issue


    Move to good reception area and re-test (Poor reception area)
    → Proceed with below step if issue continues
    (2) External/Environmental issue
    • Black box
    • Cable connection
    1. Black box
      1. Remove power on black box and reconnect

        (Many cases with GPS reception issue due to black box power)

    2. Antenna/Antenna ↔ AVN Cable connection status
      Fig 12: Screen Display - Antenna AVN Cable Connection Status
      G12792621Courtesy of KIA MOTORS AMERICA, INC.
      1. Check antenna connection
        1. Check rear AVN antenna connection status (Blue color)
        2. Joint antenna connection status

          → Check vehicle diagram, 'A pillar', 'C pillar'

        3. Check antenna connection at roof
        4. Cable modification
      2. Check antenna connection or Engineering mode
        1. Engineering mode → Care → I/F → GPS ANT SHORT/OPEN

          (Normal: NOT SHORT, NOT OPEN)
    No GPS reception/Inaccurate current location (3) Defect caused by Ext. parts
    1. If no antenna connection, replace antenna and re-test
      1. Use test antenna or use from dealer/MRC inventory
        Fig 13: GPS Reception/Inaccurate Current Location
        G12792622Courtesy of KIA MOTORS AMERICA, INC.
    (4) Related TSB
    1. Check related TSB, apply latest H/W and S/W

      (Example: TSB for YG AVN 4.0, Add FELT to FFC Cable (Improve CD and power problem))
    (5) H/U defect
    1. If antenna connection is good, replace H/U and re-test
      1. Additional wait time is required after disconnecting Battery
    Others
    1. For additional analysis, store log information

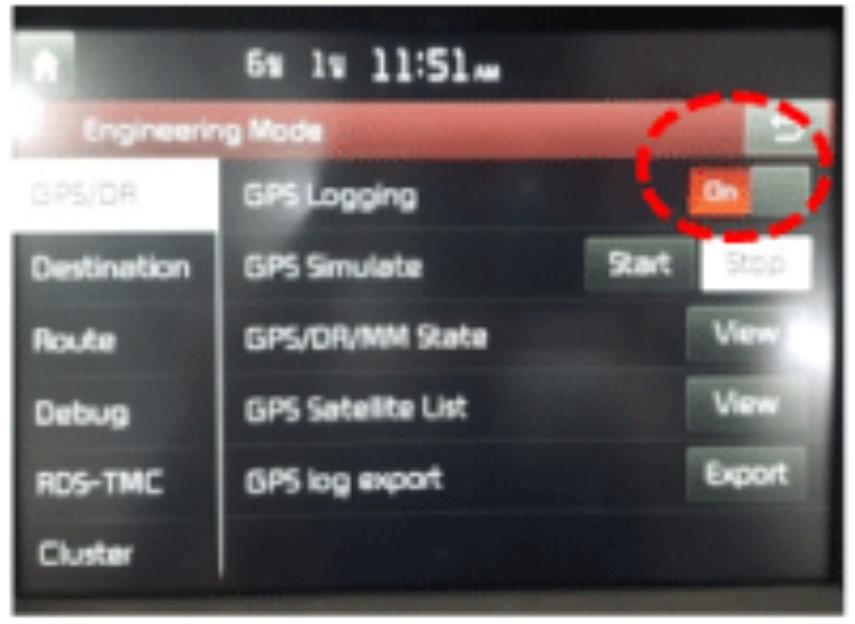

      Fig 14: Screen Display - Setting-Logging ON
      G12792623Courtesy of KIA MOTORS AMERICA, INC.

      [Setting - logging ON]

      1. Menu → Settings → System info → Storage → press left bottom 5, right bottom1

        → module info(3/3) → Navi Engineering mode → Input 120421

        → GPS/DR → GPS Logging ON → Drive TEST → GPS log export (USB memory connection)

      2. If issues duplicates during drive test, request SW analysis (GPS Module Vendor)
  5. 3. SD Card recognition fail/Error message
    Issue Inspection Description
    SD Card Recognition/Error message (1) Duplicate issue
    • SD Card recognition
    • Error message
    G12792624G12792625Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. SD card recognition

      (Normal: recognize, reboot)

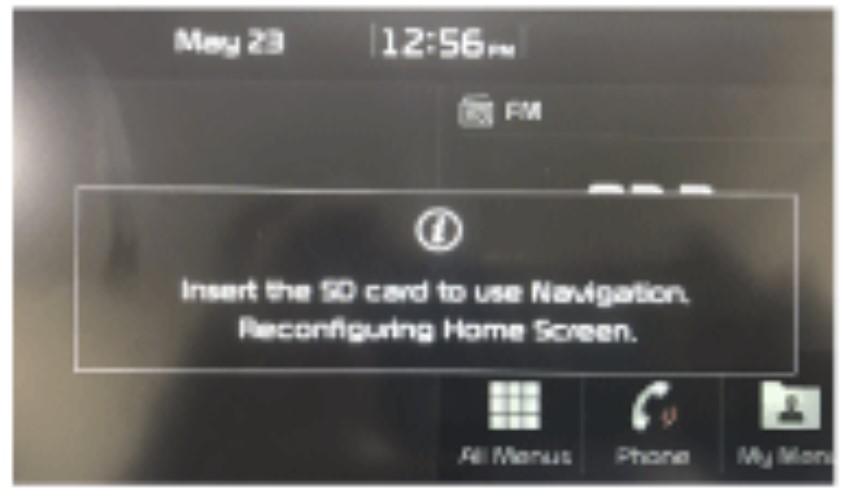

      Fig 15: Screen Display - SD Card Recognition/Error Message
      G12792625Courtesy of KIA MOTORS AMERICA, INC.
    2. Error message

      (Map recognition fail)

    3. Genuine SD Card use

      (Check compatibility with H/U)


    If SD Card fails to recognize and displays error message,
    1. Proceed with below step for further analysis
    (2) Visual inspection
    • Damaged SD Card pin, foreign object
    • Damaged SD Card socket, foreign object, bent
    G12792626G12792627Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
    1. Check for damaged PIN SD Card must be unlocked
      Fig 16: Screen Display - Check Damaged Pin SD Card Unlocked
      G12792627Courtesy of KIA MOTORS AMERICA, INC.
    2. Damaged SD Card socket, foreign object, bent
    (3) SD card files
    G12792628Courtesy of KIA MOTORS AMERICA, INC.
    1. Check data in SD card using PC

      (Check model, compare data volume → unnecessary files, data for other model) (2), (3) If issues still occur, replace H/U and re-test
