Front View Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - " FRONT BUMPER ASSEMBLY  ")

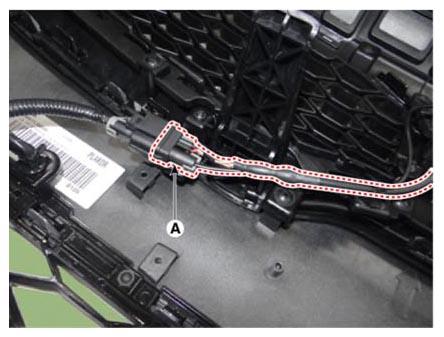

  3. Disconnect the front view camera connector (A).
    G12798910Courtesy of KIA MOTORS AMERICA, INC.

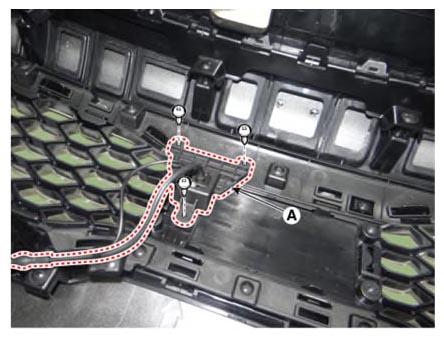

  4. Remove the front view camera (A) after loosening the mounting screws.
    G12798911Courtesy of KIA MOTORS AMERICA, INC.
