Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures

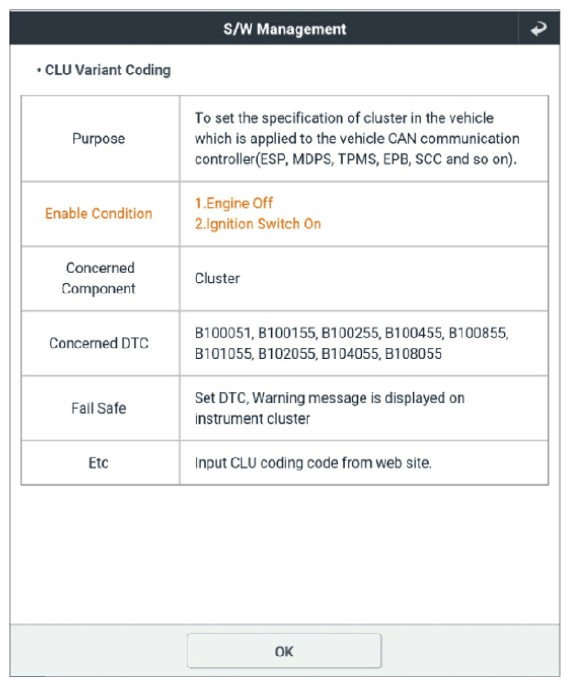

G12783696Courtesy of KIA MOTORS AMERICA, INC.

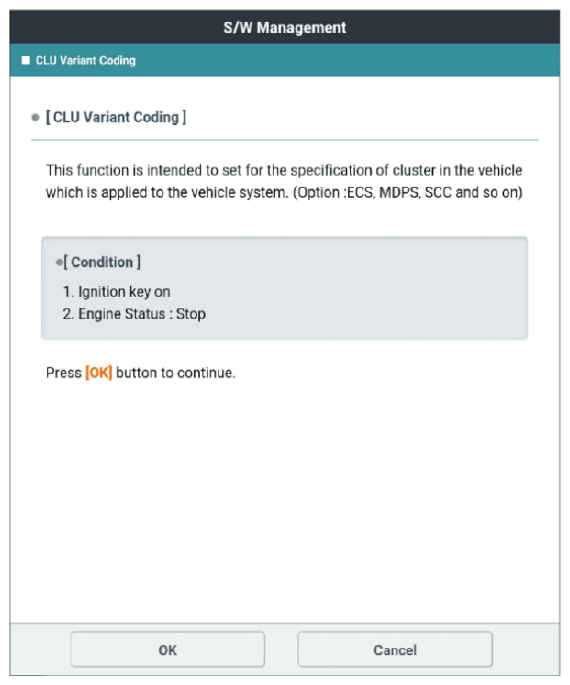

G12783697Courtesy of KIA MOTORS AMERICA, INC.

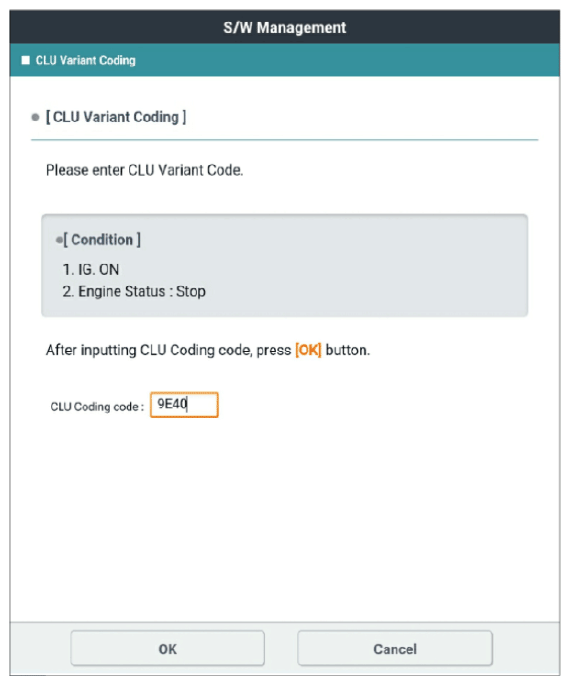

G12783698Courtesy of KIA MOTORS AMERICA, INC.

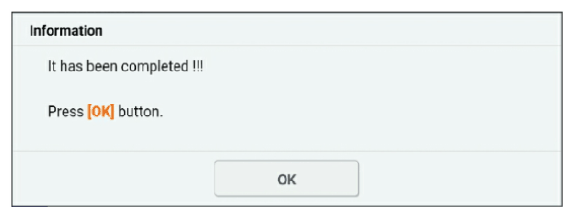

G12783699Courtesy of KIA MOTORS AMERICA, INC.
