Home >> Kia >> 2019 >> Soul EV Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control Diagnosis >> DTC C1200: Wheel Speed Sensor Front-LH Open/Short >> Specification >> Signal Waveform & Data

Signal Waveform & Data

G12814709

Courtesy of KIA MOTORS AMERICA, INC.

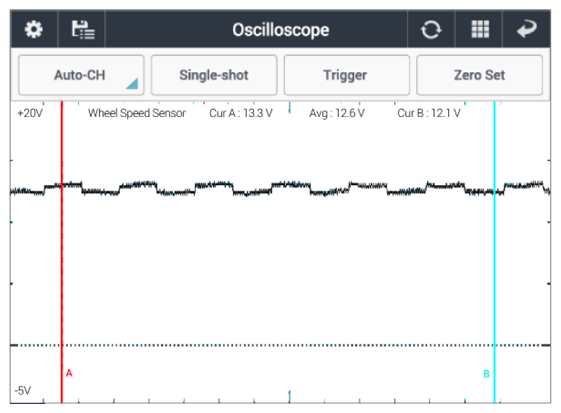

Figure) Sensor operating voltage (Frequency increases in proportion to engine speed)
