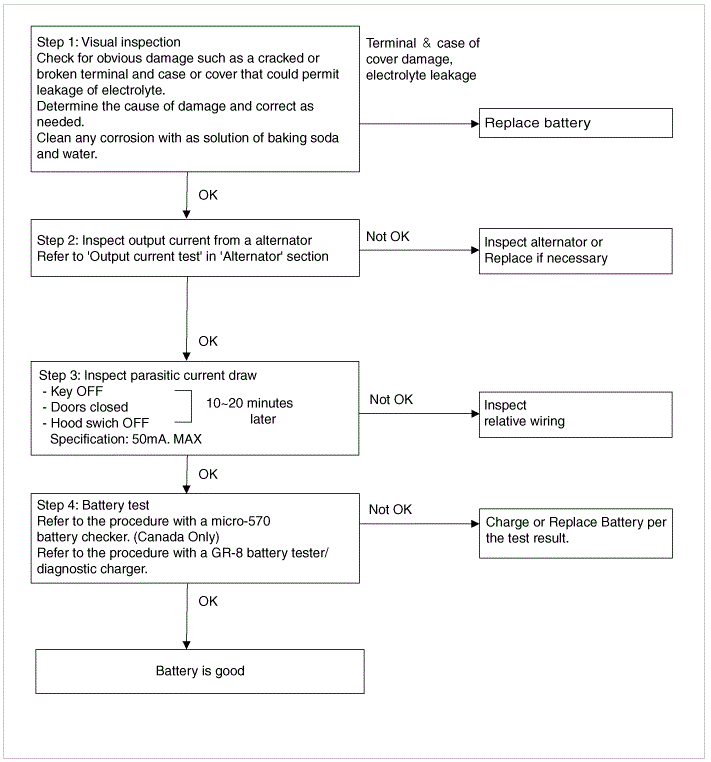

Battery Diagnostic Flow

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
G12594555Courtesy of HYUNDAI MOTOR AMERICA
