Terminal And Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  3. Has a problem been found?

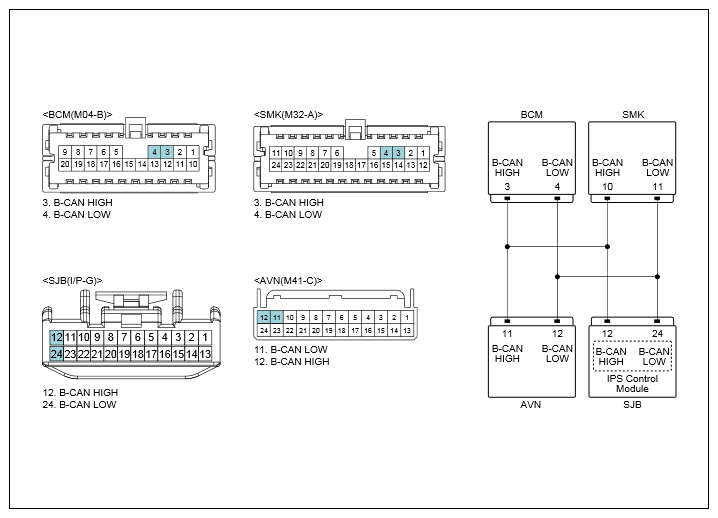

    Fig 1: BCM, SMK, AVN And SJB System Circuit
    G12209190Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
