Section 53 (Emission Control System - 2.0L - General Information)
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

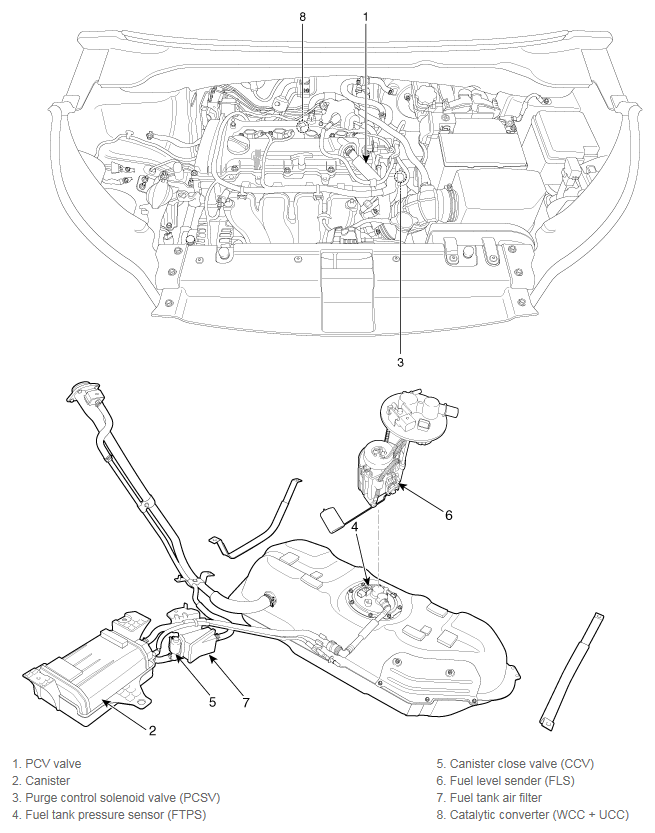

Fig 1: Emission Control System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

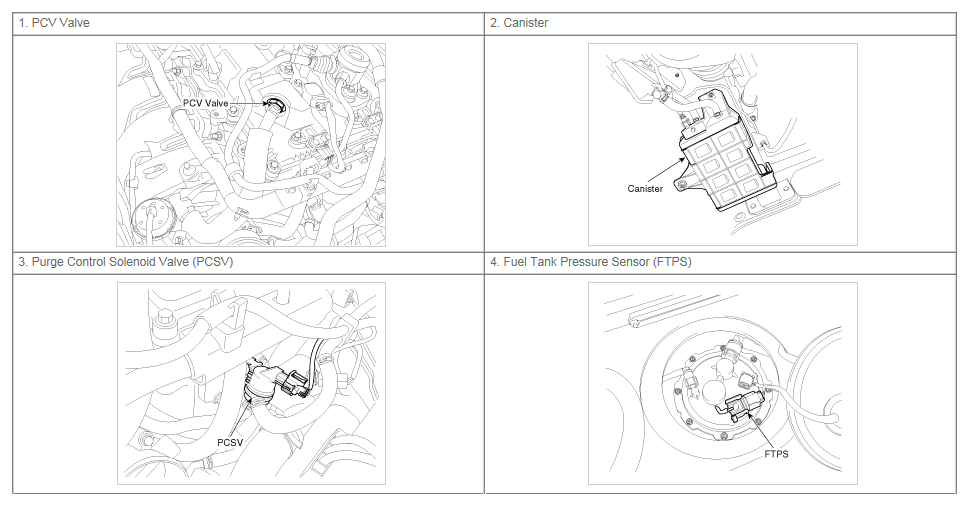

Fig 2: Emission Control System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

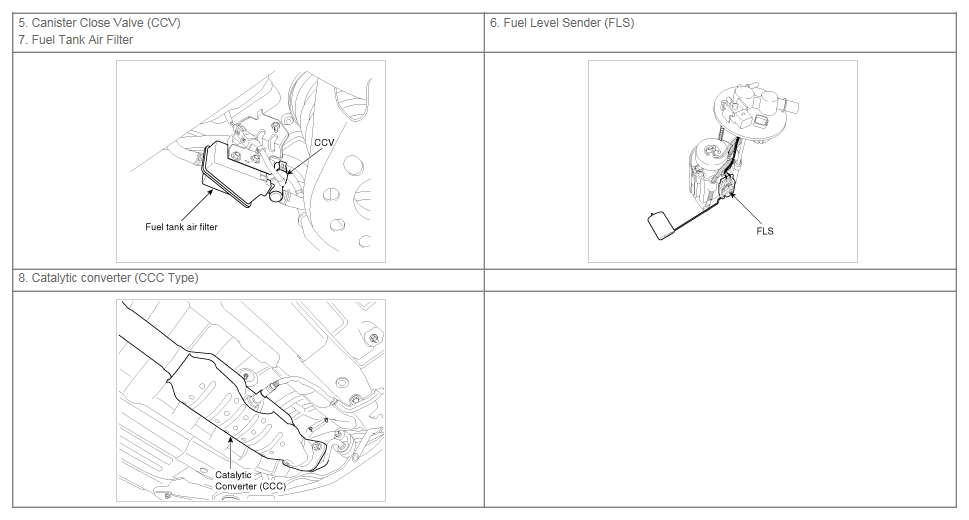

Fig 3: Emission Control System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
