Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

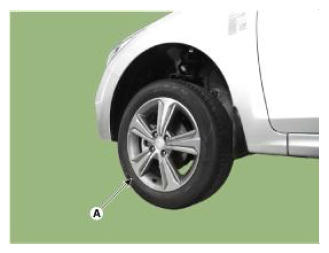

  2. Remove the front wheel and tire (A) from the front hub.

    Tightening Torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    G12600654Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage the hub bolts when removing the front wheel and tire.

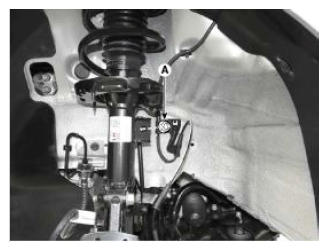

  3. Disconnect the stabilizer link with the front strut assembly after loosening the nut (A).

    Tightening Torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G12600655Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
    • Be careful not to damage the stabilizer link boots.

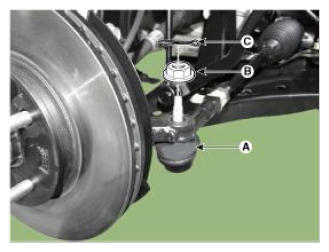

  4. Remove the tie rod end ball joint.
    1. Remove the split pin (C).
    2. Loosen the nut (B).

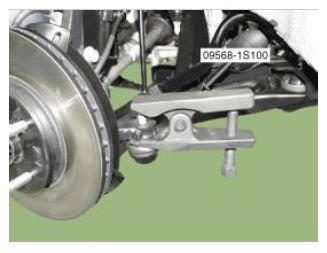

    3. Using SST (09568-1 S100), separate the ball joint (A) from the knuckle.

    Tightening Torque:

    24.5 - 34.3 N.m (2.5 - 3.5 kgf.m, 18.1 - 25.3 lb-ft)

    G12600656Courtesy of HYUNDAI MOTOR AMERICA
    G12600657Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the split pin (C).

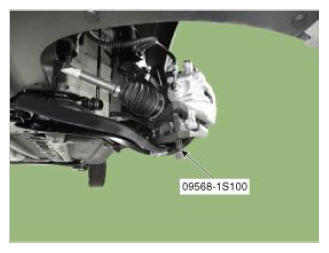

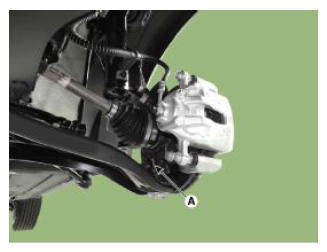

  5. Loosen the lower arm nut (A) and then remove the lower arm ball joint by using SST (09568-1 S100).

    Tightening Torque:

    58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb-ft)

    G12600658Courtesy of HYUNDAI MOTOR AMERICA
    G12600659Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the lower arm lock nut (A).
    • Be careful not to damage the ball joint boots.

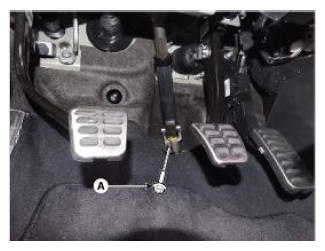

  6. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening Torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

    G12600660Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the bolt.
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

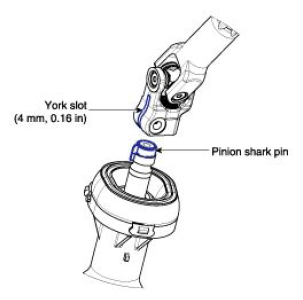

    • When assembling, insert the shark pin into the universal joint york slot as the image below.
    G12600661Courtesy of HYUNDAI MOTOR AMERICA

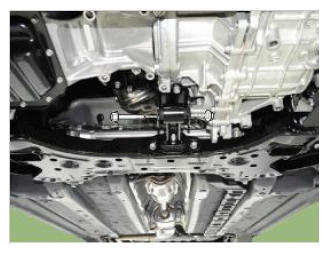

  7. Remove the roll rod stopper by loosening the bolt and nut.

    Tightening Torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    G12600662Courtesy of HYUNDAI MOTOR AMERICA

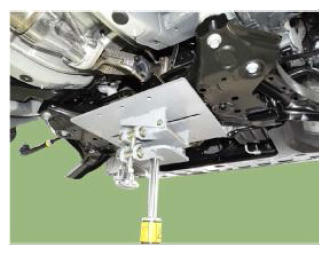

  8. Remove the muffler rubber hanger (A).
    G12600663Courtesy of HYUNDAI MOTOR AMERICA

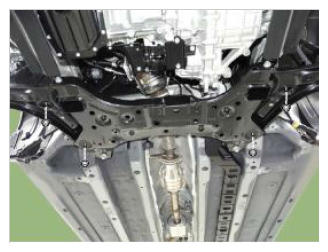

  9. Remove the subframe by loosening the mounting bolts and nuts.

    Tightening Torque

    176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 b-ft)

    G12600664Courtesy of HYUNDAI MOTOR AMERICA

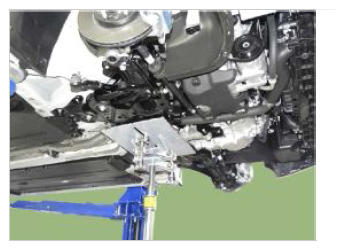

    NOTE:
    • Set a transmission jack for safety.
    G12600665Courtesy of HYUNDAI MOTOR AMERICA

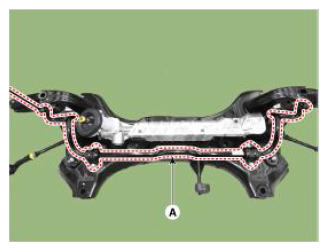

  10. Loosen the mounting bolts and then remove the stabilizer bar (A).

    Tightening Torque:

    44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

    G12600666Courtesy of HYUNDAI MOTOR AMERICA

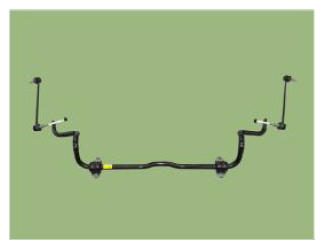

  11. Remove the stabilizer link.

    Tightening Torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G12600667Courtesy of HYUNDAI MOTOR AMERICA

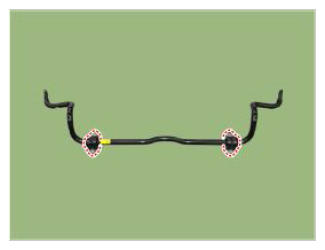

  12. Remove the bushing.
    G12600668Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, assemble slit of bush is located in the direction shown.
    G12600669Courtesy of HYUNDAI MOTOR AMERICA
  13. Install the other parts in the reverse order of removal.
  14. Check the Wheel Alignment.

    (Refer to Tires/Wheels - "ALIGNMENT ")
