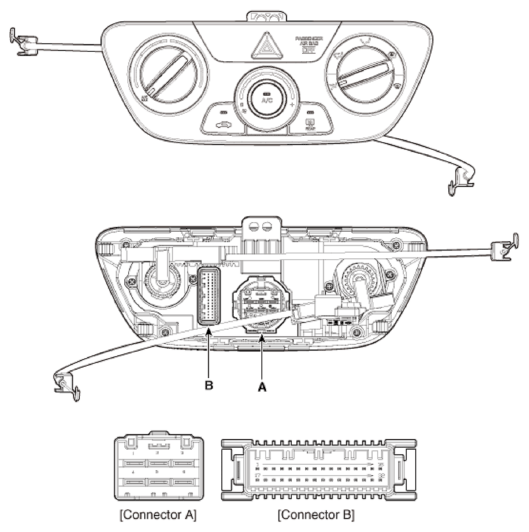

Components And Components Location: Components
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
| Connector | Pin NO | Function |
|---|---|---|
| B | 1 | Battery (+) |
| 2 | - | |
| 3 | IGN1 | |
| 4 | - | |
| 5 | Intake actuator (Fresh) | |
| 6 | Intake actuator (Recirculation) | |
| 7 | Intake actuator (Feedback) | |
| 8 | Evaporator Temperature Sensor (+) | |
| 9 | Ambient Temperature Sensor (+) | |
| 10 | Blower on signal common | |
| 11 | Max blower on signal | |
| 12 | - | |
| 13 | C_CAN High | |
| 14 | C_CAN Low | |
| 15 | - | |
| 16 | Ground | |
| 17 | IGN2 | |
| 18 | ILL+ (TAIL) | |
| 19 | - | |
| 20 | Sensor ground REF (+5V) | |
| 21 | HTD (Rear defog indicator) | |
| 22 | Hazard signal | |
| 23 | Rear defog switch | |
| 24 | - | |
| 25 | - | |
| 26 | - | |
| 27 | - | |
| 28 | ECV+ | |
| 29 | ECV- (Ground) | |
| 30 | ILL- (RHEO) | |
| 31 | Sensor ground | |
| 32 | Ground |
