Components And Components Location: Components
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

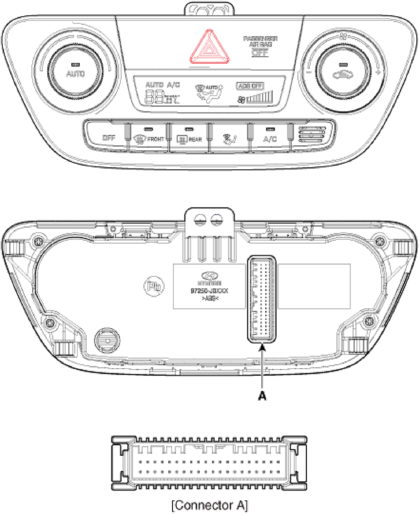

| Connector | Pin NO | Function |
|---|---|---|
| A | 1 | Battery (+) |
| 2 | ADS Sensor (PWM) | |
| 3 | ILL+ (TAIL) | |
| 4 | C_CAN High | |
| 5 | C_CAN Low | |
| 6 | Defrost actuator (Open) | |
| 7 | Defrost actuator (Close) | |
| 8 | Mode control actuator (Vent) | |
| 9 | Mode control actuator (Def) | |
| 10 | Temperature control actuator (Cool) | |
| 11 | Temperature control actuator (Warm) | |
| 12 | Intake actuator (Fresh) | |
| 13 | Intake actuator (Recirculation) | |
| 14 | Mode control actuator (Feedback) | |
| 15 | Temperature control actuator (Feedback) | |
| 16 | Intake actuator (Feedback) | |
| 17 | Defrost actuator (Feedback) | |
| 18 | ECV+ | |
| 19 | ECV- (Ground) | |
| 20 | ILL- (RHEO) | |
| 21 | IGN2 | |
| 22 | IGN1 | |
| 23 | HTD (Rear defog indicator) | |
| 24 | PAB off signal | |
| 25 | PAB IGN1 | |
| 26 | Sensor ground REF (+5V) | |
| 27 | Detent out (-) | |
| 28 | Ambient Temperature Sensor (+) | |
| 29 | Evaporator Temperature Sensor (+) | |
| 30 | Photo sensor (-) | |
| 31 | - | |
| 32 | - | |
| 33 | Hazard signal | |
| 34 | Rear defog switch | |
| 35 | - | |
| 36 | Blower motor (+) | |
| 37 | Fet (Drain feedback) | |
| 38 | Fet (Gate) | |
| 39 | Sensor ground | |
| 40 | Ground |
