ASP Calibration Procedures

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect self - diagnosis connector (16 pins) located in the lower of driver side crash pad to self - diagnosis device.
  2. Turn the self - diagnosis device after key is ON.
  3. Turn the steering wheel to straight ahead position.

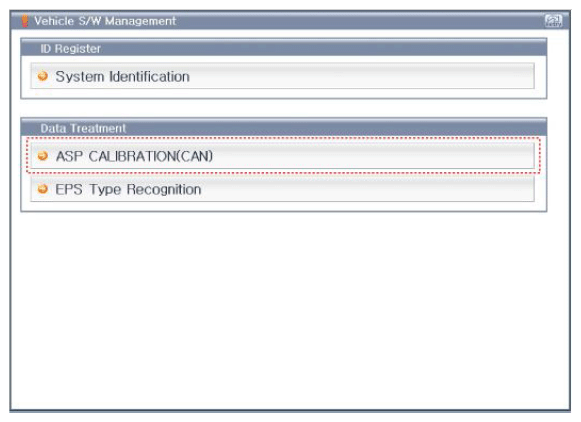

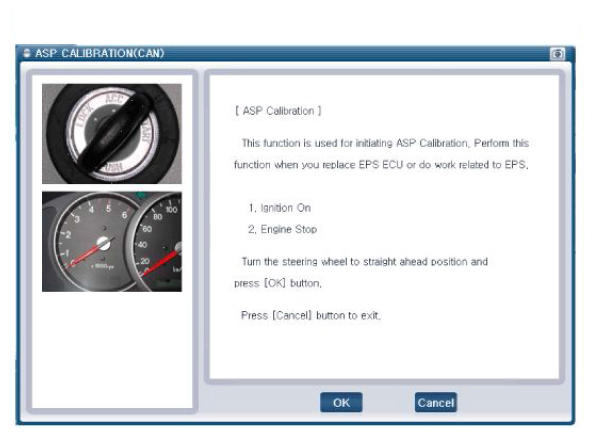

  4. After Selecting the "vehicle model" and "system", select the "ASP Calibration" on GDS vehicle selection screen.
G12600859Courtesy of HYUNDAI MOTOR AMERICA
G12600860Courtesy of HYUNDAI MOTOR AMERICA
