Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the engine cover. (Refer to Engine Mechanical System - "ENGINE COVER ")
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the Battery and Battery Tray.
(Refer to Engine Electrical System - "BATTERY ")

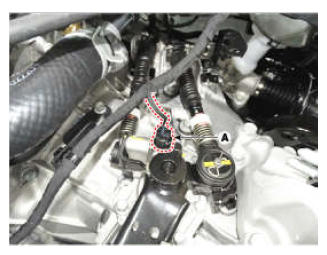

Disconnect the back-up lamp switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

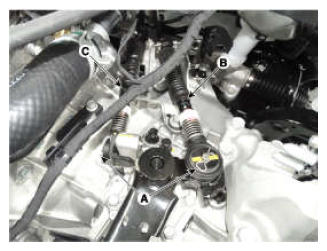

Disconnect the shift cable (B) and the select cable (C) after removing the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable bracket (A).
Tightening Torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the ground bolt (A), and clutch tube bracket bolts (B).
Tightening Torque:

[A] 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

[B] 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

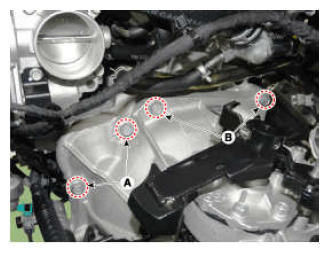

Remove the wiring bracket bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

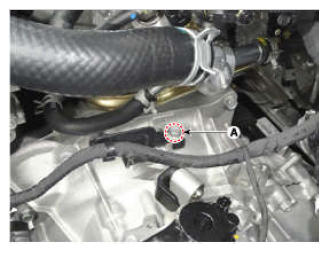

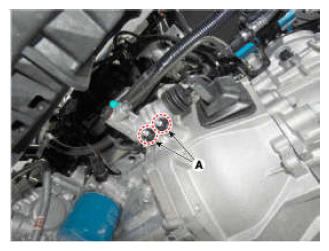

Remove the starter mounting bolt (A-2ea) and transaxle upper mounting bolts (B-2ea).
Tightening Torque:

[A] 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

[B] 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the Cowl Top Cover.
(Refer to Body - "COWL TOP COVER ")
Assemble the Engine Support Fixture (Beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000).
(Refer to SPECIAL SERVICE TOOLS - "Engine Support Fixture Assembly Drawing")

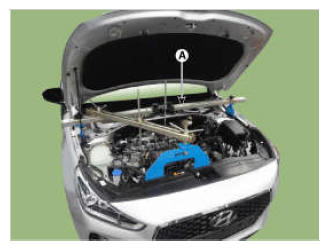

Using the engine support fixture (A), hold the engine and transaxle assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA

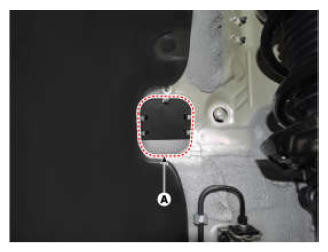

Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

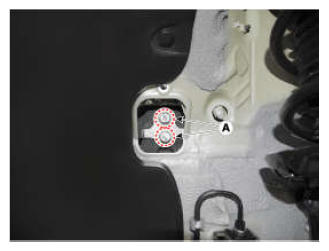

Remove the transaxle mounting bolts (A).
Tightening Torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

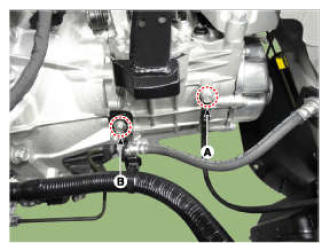

Remove the transaxle support bracket (A).
Tightening Torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Loosen the oil drain plug (A), and then drain the oil.
Tightening Torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the Front Drive Shaft Assembly.
(Refer to Driveshaft And Axle - "FRONT DRIVESHAFT ")

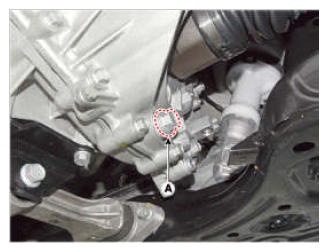

Remove the clutch release cylinder mounting nut (A-2ea).
Tightening Torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

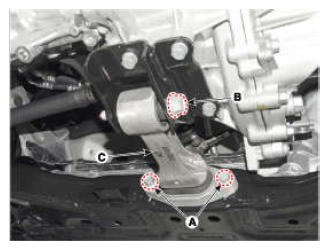

Remove the roll rod bracket (C) after removing bolt (A, B).
Tightening Torque:

[A] 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

[B] 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

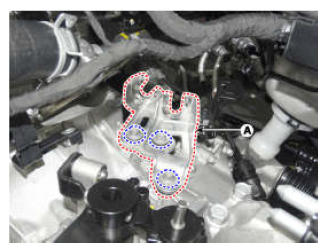

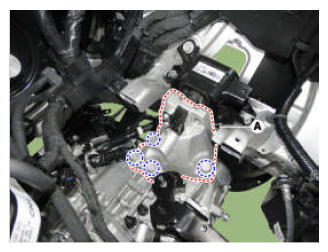

Remove the roll rod support bracket (A).
Tightening Torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

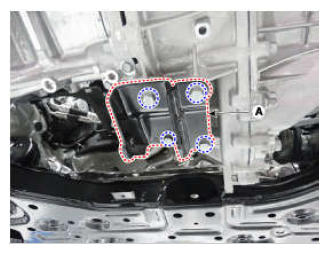

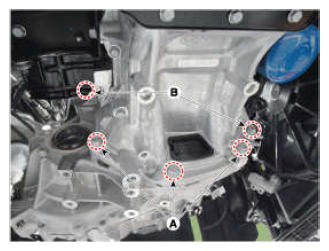

Remove the lower mounting bolts (A-3ea, B-2ea) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.
Tightening Torque:

[A] 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)

[B] 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

CAUTION: Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.
