Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")

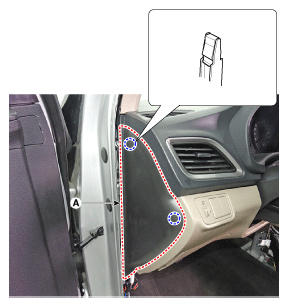

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuse box cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the hood latch release handle cable (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws and remove the crash pad lower panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin - type retainers).
