Monitor KDS Data

  1. Connect KDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operation temperature.
  3. Check the "Current Data" about related DTC with KDS.

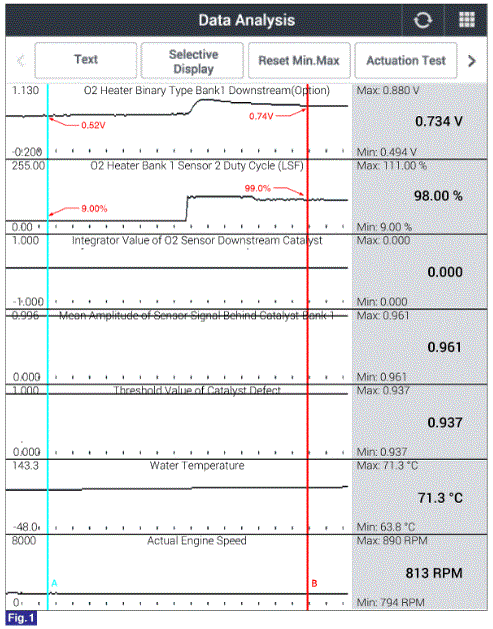

    Fig 1: Scantool Display - HO2S Downstream (S2) Heater Control Status
    G00578101Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Scantool Display - Engine Idle After Warm-Up And Approx. 2000 RPM And Acceleration
    G00578102Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
