Monitor DTC Status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Code (DTC)" with KDS.
Is DTC status displayed as Active?

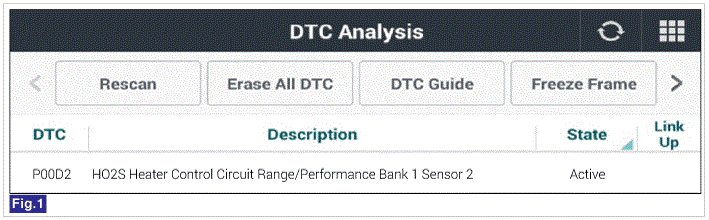

Fig 1: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "Monitor KDS Data " procedure.
NO
- Go to "Verification of Vehicle Repair " procedure.
