System Inspection

■ Check the fuel filter for restrictions

Remove the fuel pump and check filter for debris and/or clogging of the fuel supply line.

■ Check the fuel level

If you run out of fuel significantly on ramp, it may be a factor of degradation of the fuel pressure.

■ Check low-pressure fuel supply line leakage and restriction

Low-pressure fuel supply line damage and/or restricted blockage can be a fuel pressure drop factor.

■ Check Fuel Pressure Regulator

• Check Fuel Pressure Regulator performance by measuring voltage and current.

1. Using an oscilloscope, measure voltage by using and connecting channel A (+) voltage probe to High Side and channel A (-) voltage prove to Low Side.
2. Measure operation current by using Low Current Sensor Module.

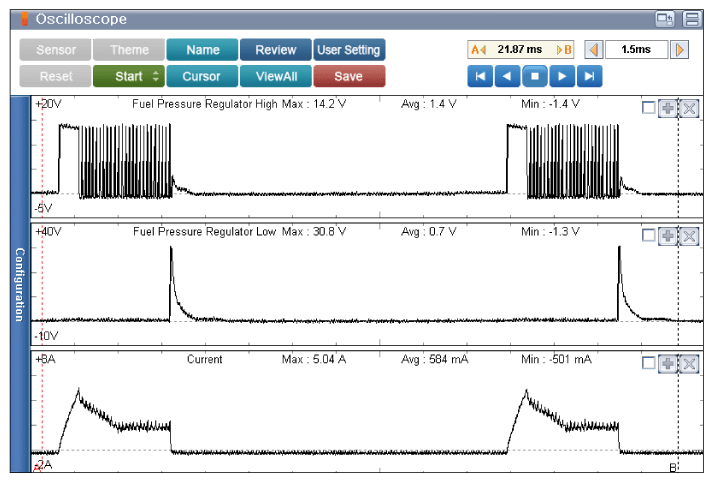

   Fig 1: Scantool Display - Signal Waveform & Data (Approx 2000RPM)

   Courtesy of KIA MOTORS AMERICA, INC.

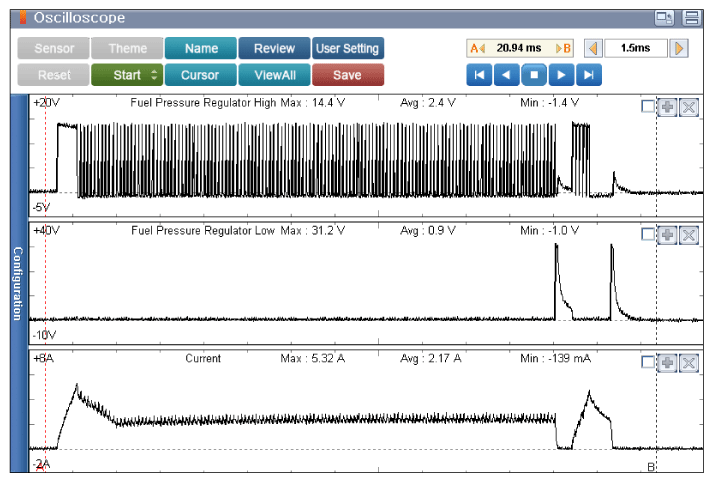

   Fig 2: Scantool Display - Signal Waveform & Data (Engine Idle After Warm Up)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Are all listed items normal?

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Recheck the listed items from this troubleshooting guide steps, and replace or repair as necessary and then go to "Verification of Vehicle Repair " procedure.
