SPC Calibration Procedure

  1. Ignition switch "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "ON"
  4. Select "Vehicle S/W Management  " on KDS/GDS.
  5. Perform "SPC calibration" in "Vehicle S/W Management  " with KDS/GDS.

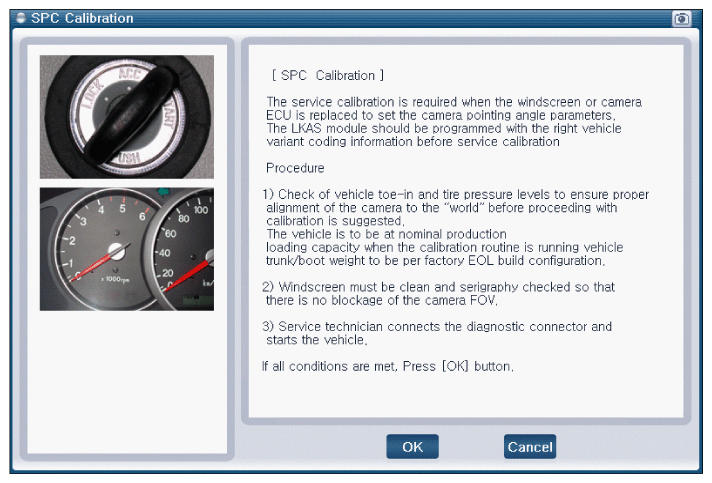

    Fig 1: Scantool Display - LDWS SPC Calibration 1
    G12216414Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Scantool Display - LDWS SPC Calibration 2
    G12216415Courtesy of KIA MOTORS AMERICA, INC.

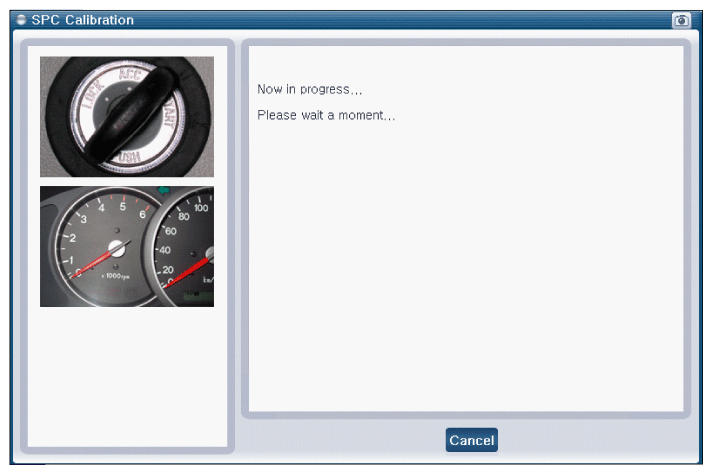

    Fig 3: Scantool Display - LDWS SPC Calibration 3
    G12216416Courtesy of KIA MOTORS AMERICA, INC.

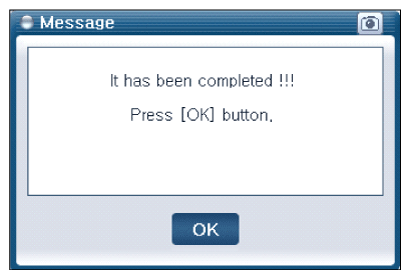

    Fig 4: Scantool Display - LDWS SPC Calibration 4
    G12216417Courtesy of KIA MOTORS AMERICA, INC.
  6. Clear any DTCs stored in the system with KDS/GDS.
  7. Re-check DTC in the system with KDS/GDS.
  8. Did the same DTC is stored in the system?

    YES

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace LDWS ECU and then go to "Verification of Vehicle Repair " procedure.
