Diagnostic Procedure Using A Diagnostic Instrument

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

The following procedure describes how to diagnose faults using a diagnostic instrument.

Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of driver's seat, and then turn on the ignition to activate the diagnostic instrument.
In the GDS Vehicle Type Selection menu, select "Vehicle Type" and "TPMS" System, and then opt for "OK".

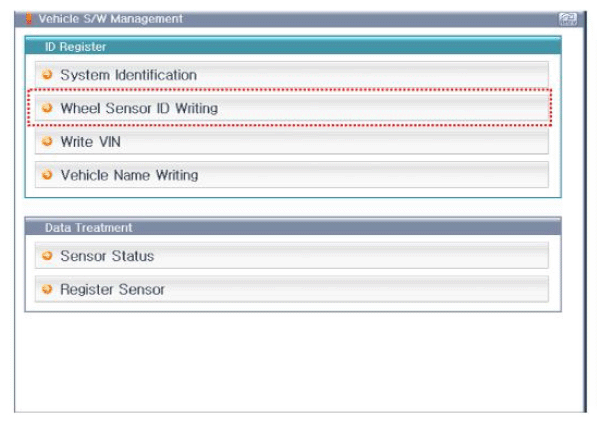

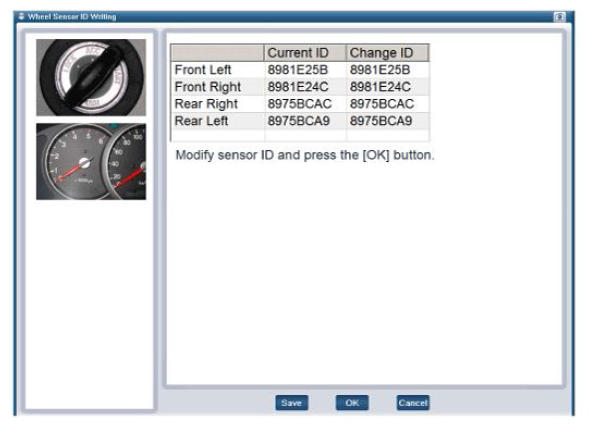

[Wheel Sensor ID Writing (Wireless)]
