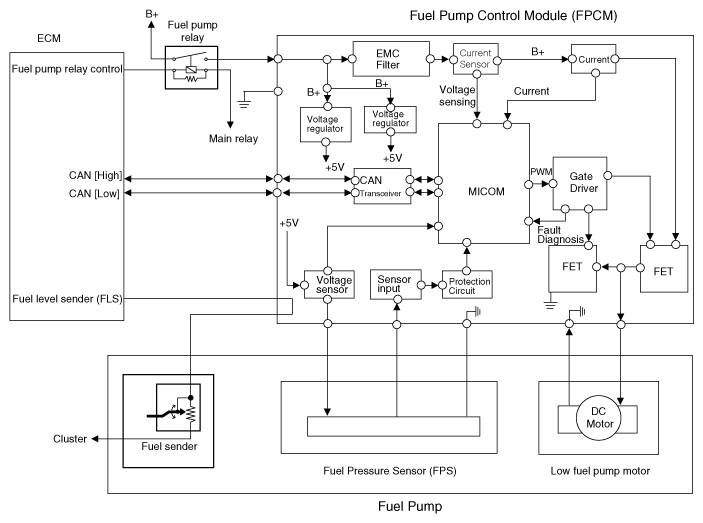

Home >> Kia >> 2019 >> Sorento L >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 2.4L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
