Variant Coding

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

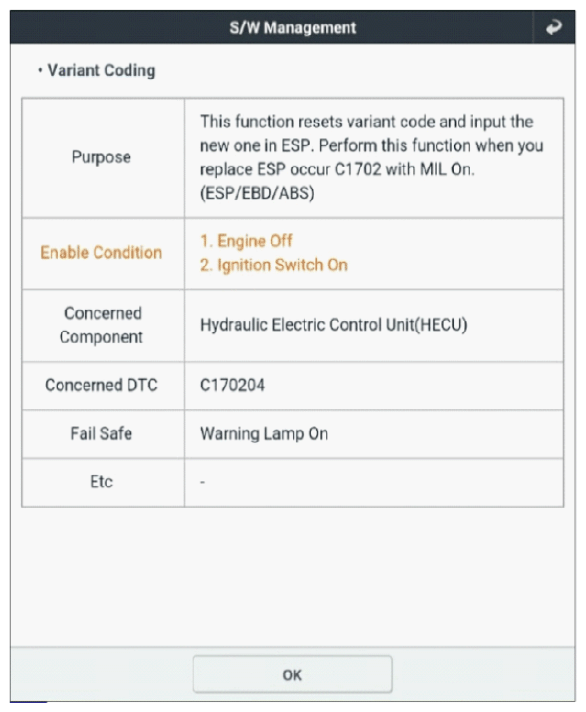

G12839525Courtesy of KIA MOTORS AMERICA, INC.

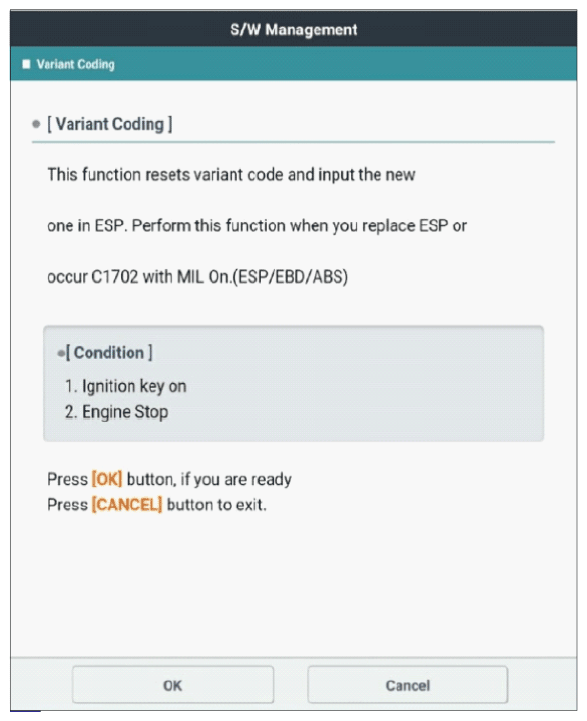

G12839526Courtesy of KIA MOTORS AMERICA, INC.

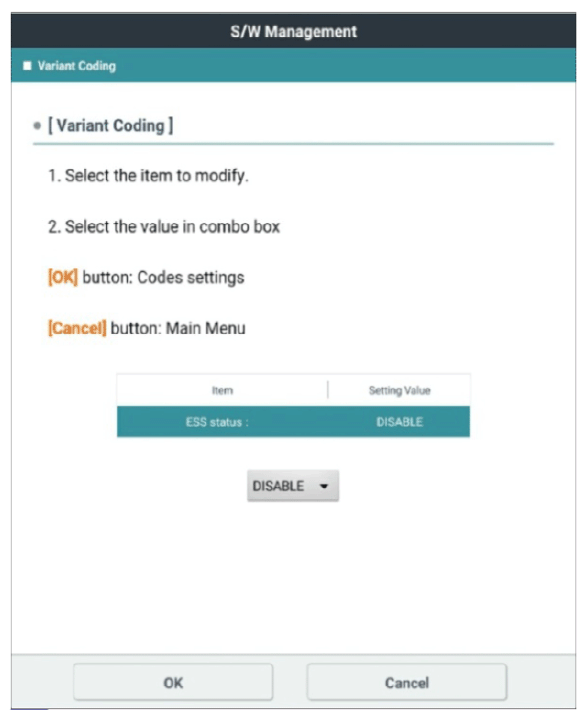

G12839527Courtesy of KIA MOTORS AMERICA, INC.

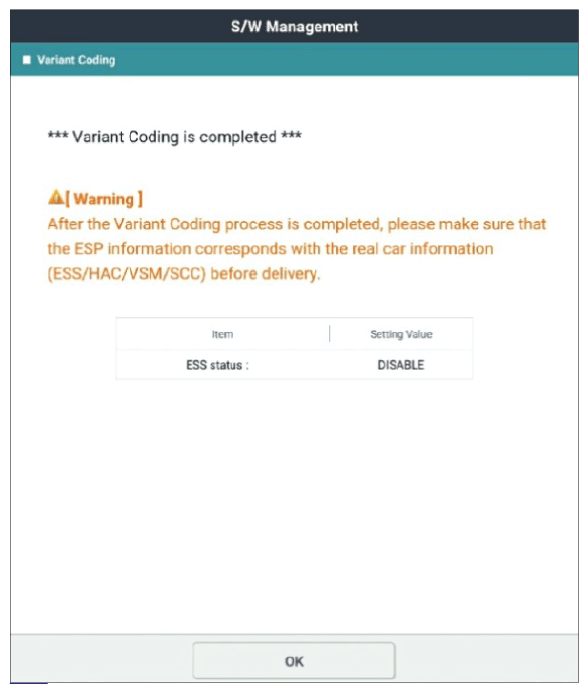

G12839528Courtesy of KIA MOTORS AMERICA, INC.

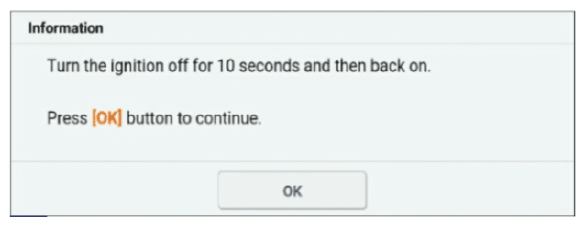

G12839529Courtesy of KIA MOTORS AMERICA, INC.
