Variant Coding

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

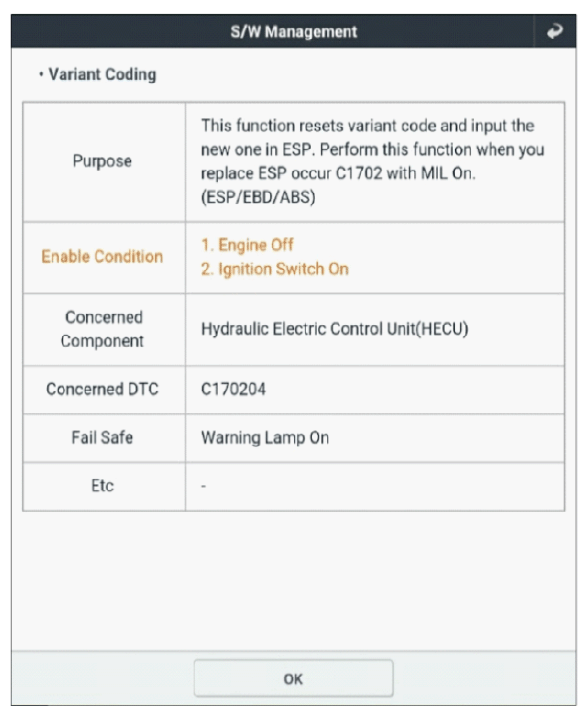

G12839411Courtesy of KIA MOTORS AMERICA, INC.

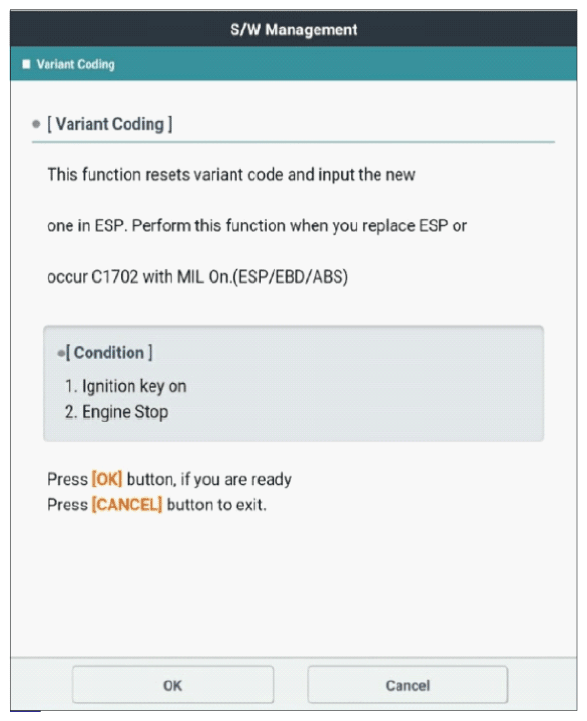

G12839412Courtesy of KIA MOTORS AMERICA, INC.

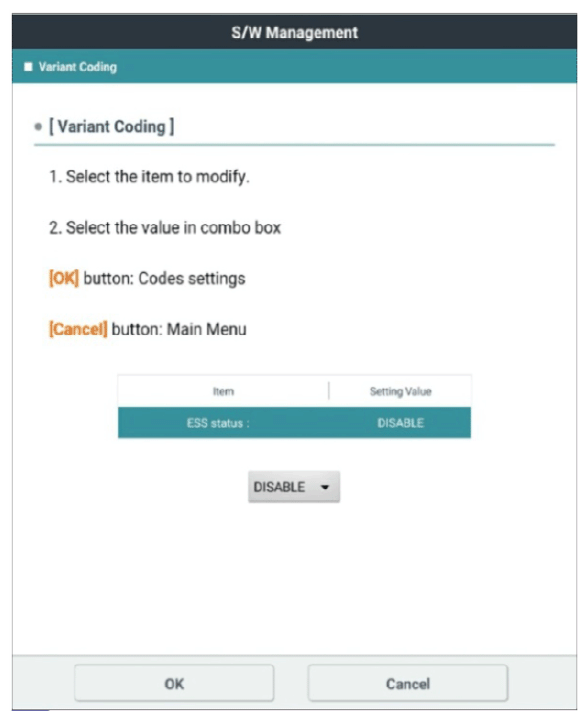

G12839413Courtesy of KIA MOTORS AMERICA, INC.

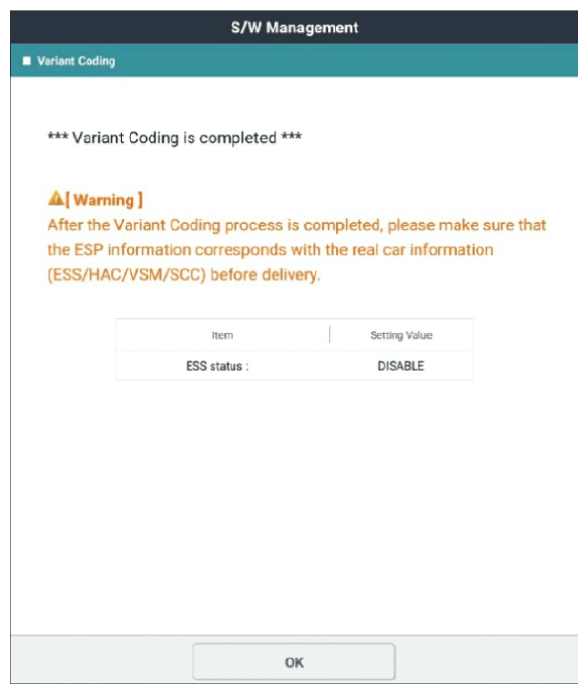

G12839414Courtesy of KIA MOTORS AMERICA, INC.

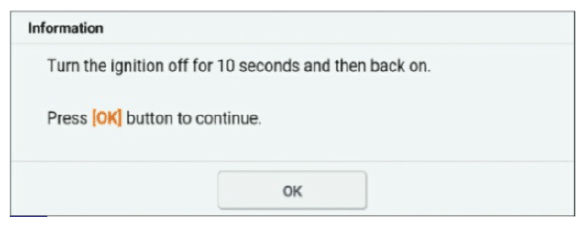

G12839415Courtesy of KIA MOTORS AMERICA, INC.
