Variant Coding

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

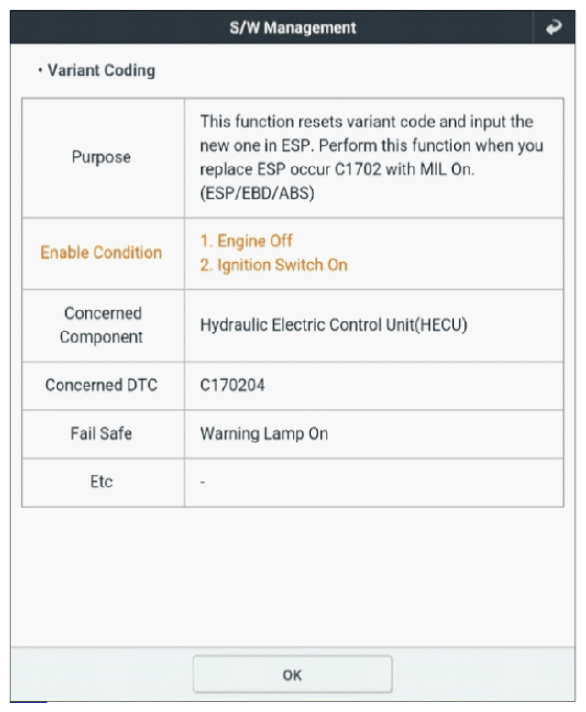

G12839398Courtesy of KIA MOTORS AMERICA, INC.

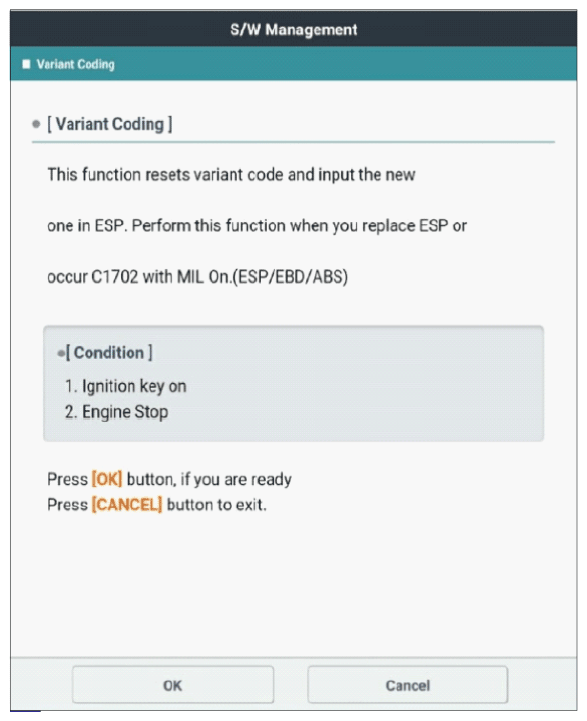

G12839399Courtesy of KIA MOTORS AMERICA, INC.

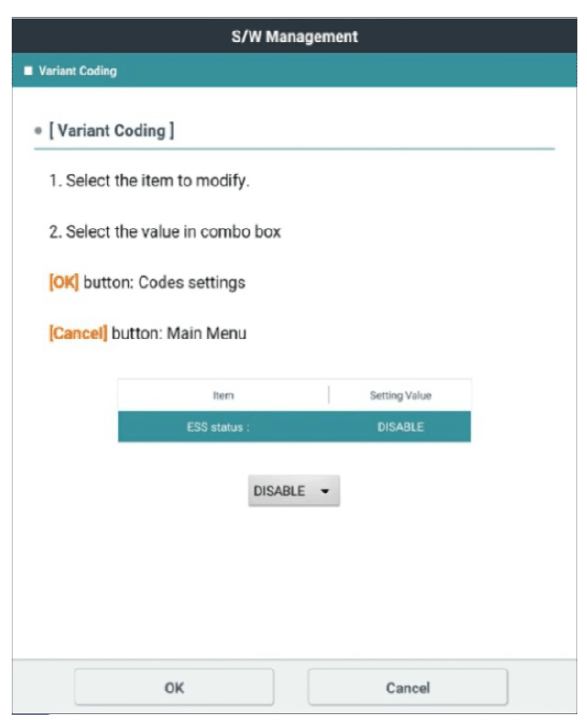

G12839400Courtesy of KIA MOTORS AMERICA, INC.

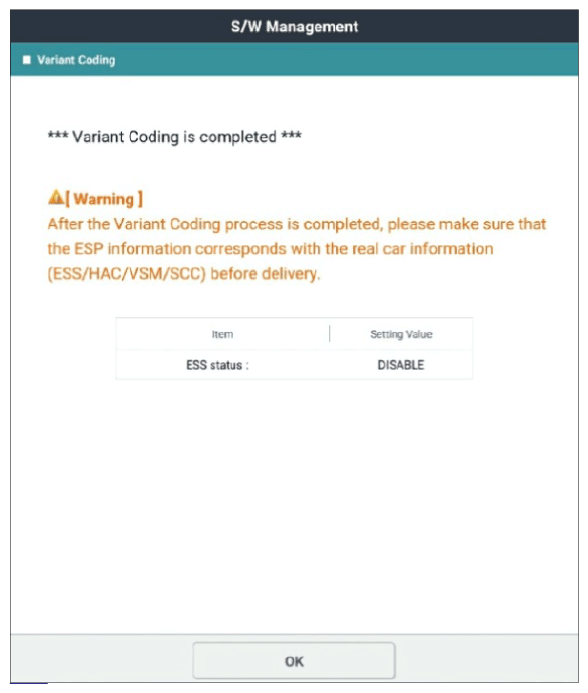

G12839401Courtesy of KIA MOTORS AMERICA, INC.

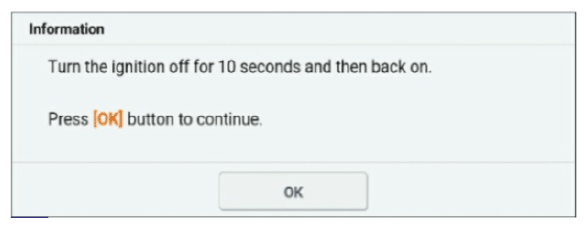

G12839402Courtesy of KIA MOTORS AMERICA, INC.
