Component Replacement

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Perform "Body Sensor Reset" in "Vehicle S/W Management" with KDS.

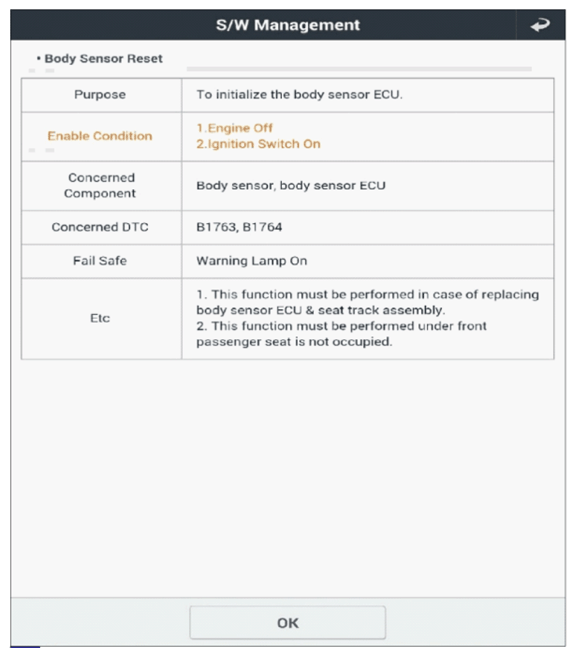

    G13041840Courtesy of KIA MOTORS AMERICA, INC.

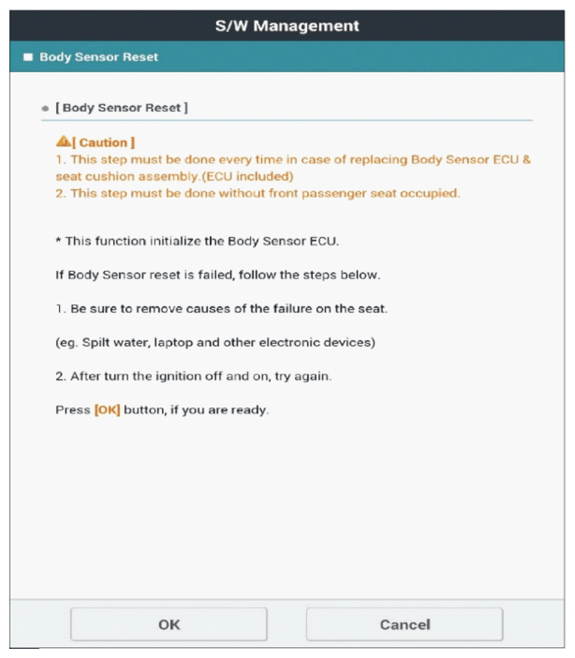

    G13041841Courtesy of KIA MOTORS AMERICA, INC.

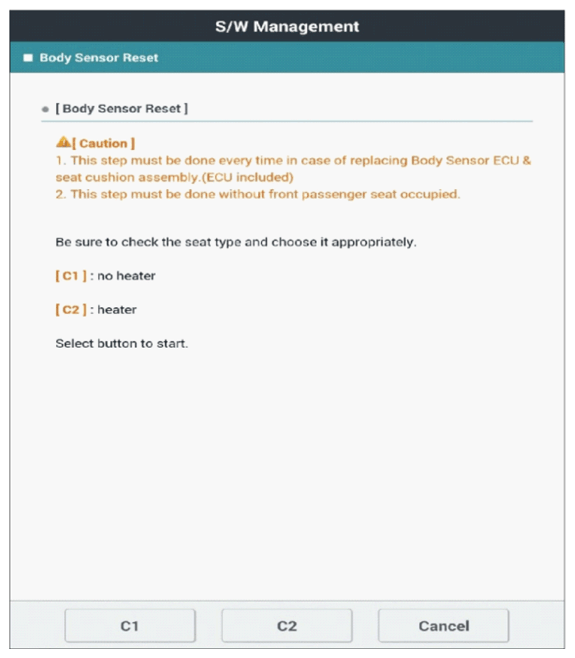

    G13041842Courtesy of KIA MOTORS AMERICA, INC.

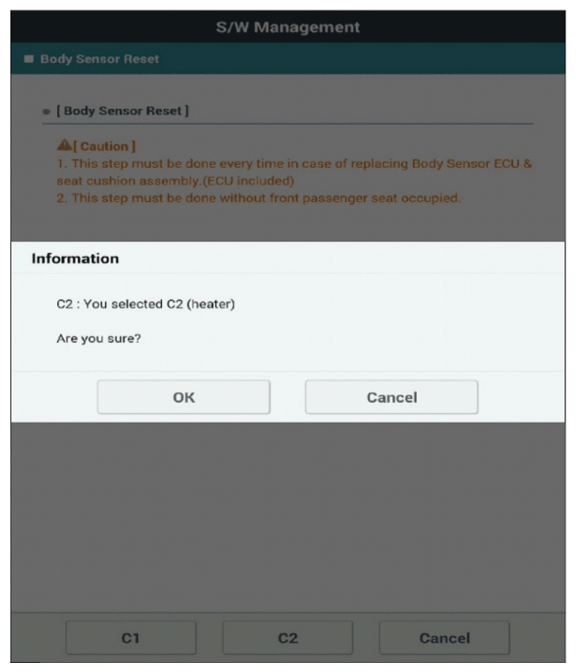

    G13041843Courtesy of KIA MOTORS AMERICA, INC.

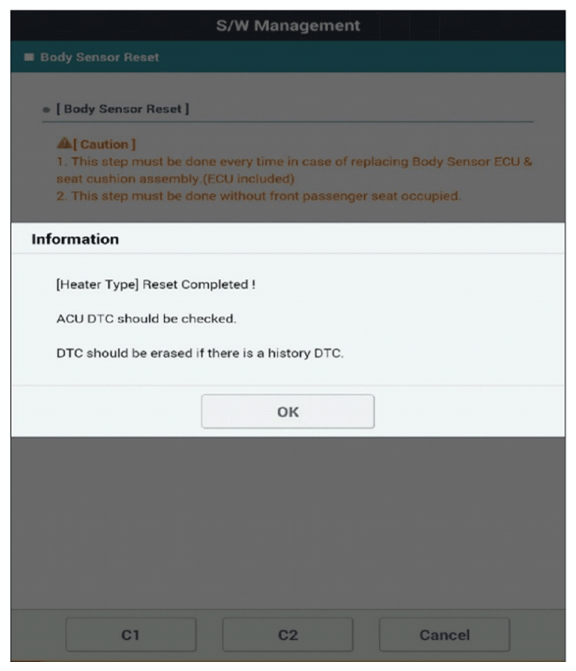

    G13041844Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn Ignition "OFF" and then "ON"
  6. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
  7. Clear all DTCs in the system with KDS.
  8. Re-check DTC in the system with KDS.
