Circuit Diagram

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

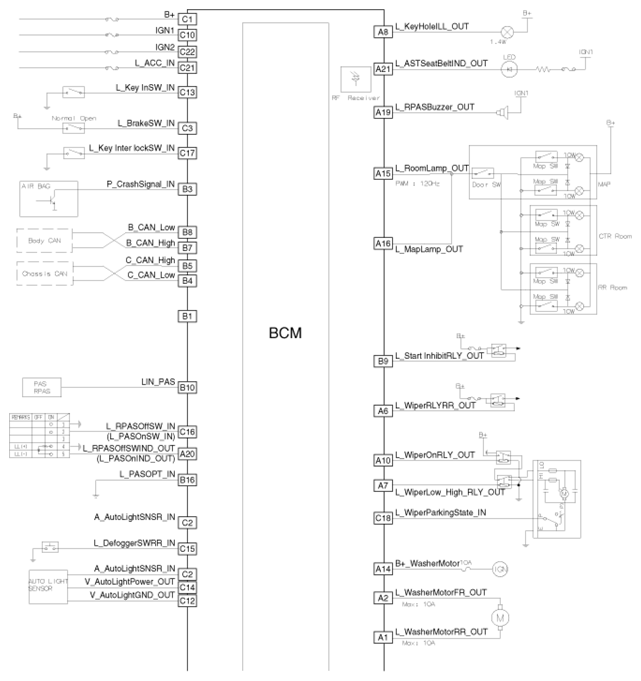

G13046775Courtesy of KIA MOTORS AMERICA, INC.

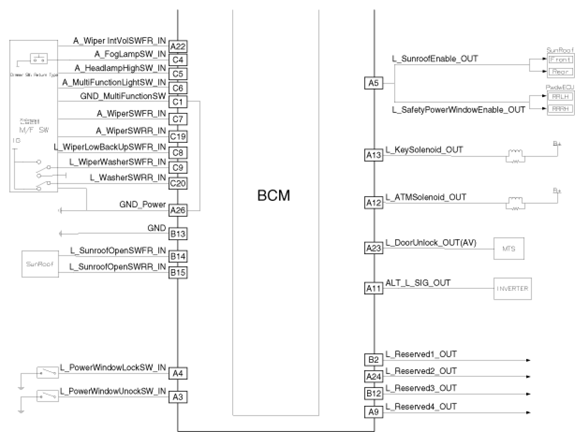

G13046776Courtesy of KIA MOTORS AMERICA, INC.
