C1 [Auto] Procedure

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition "OFF", and connect KDS.
  2. Perform "Body Sensor Reset" in "Vehicle S/W Management" with KDS.

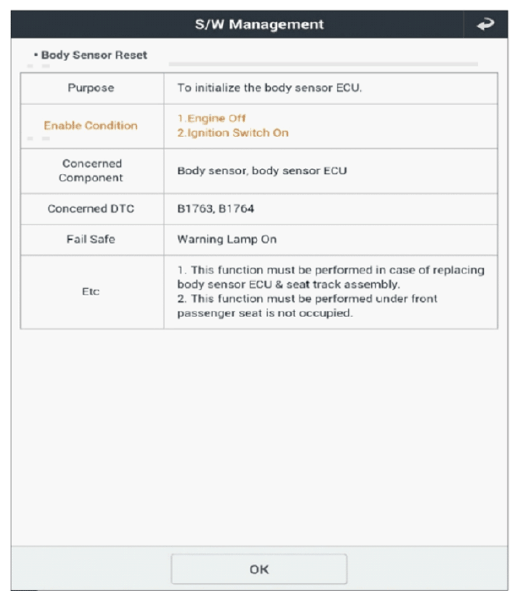

G13045053Courtesy of KIA MOTORS AMERICA, INC.

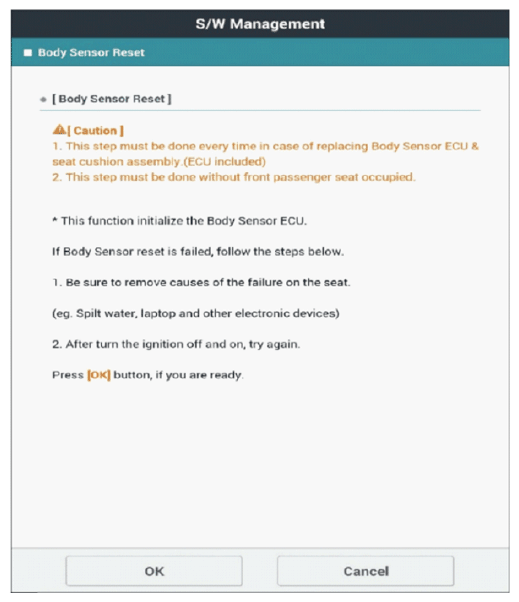

G13045054Courtesy of KIA MOTORS AMERICA, INC.

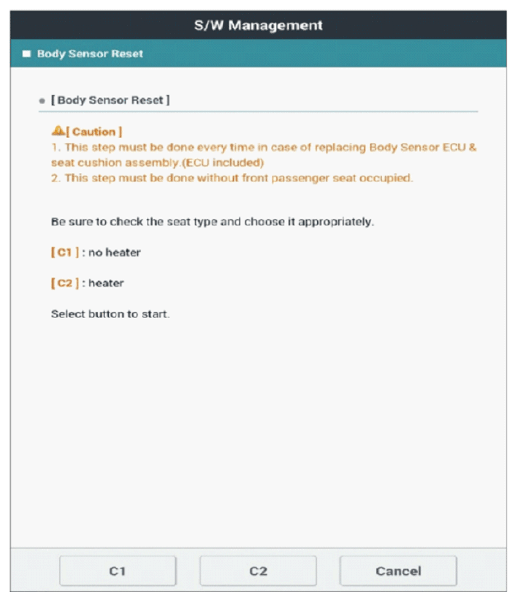

G13045055Courtesy of KIA MOTORS AMERICA, INC.

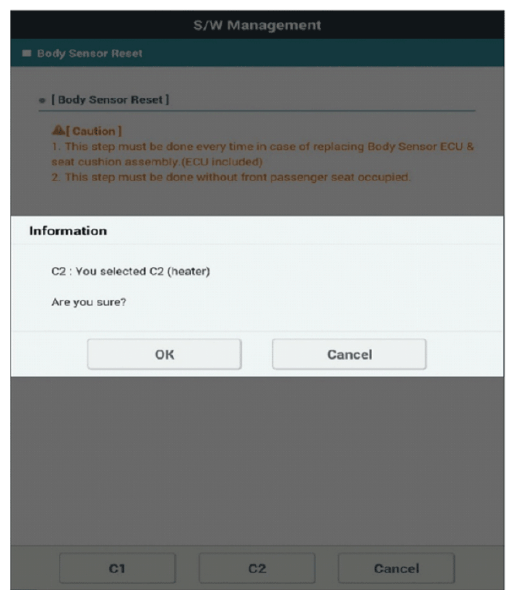

G13045056Courtesy of KIA MOTORS AMERICA, INC.

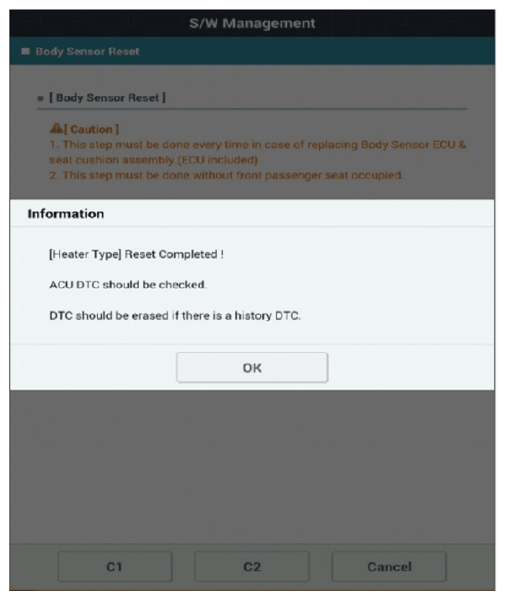

G13045057Courtesy of KIA MOTORS AMERICA, INC.
