Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

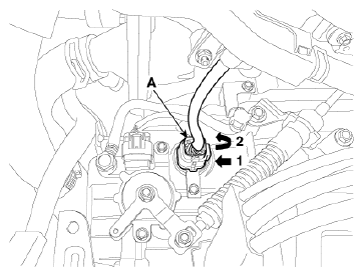

  3. Disconnect the solenoid valve connector (A).
    G12578080Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between power terminal (10) and signal terminal (2).

    Specification  : 5.1 ± 0.3 Ω

    G12578081Courtesy of KIA MOTORS AMERICA, INC.
