Monitor KDS/GDS Data

Inspection Condition	Inspection Procedure	Reference

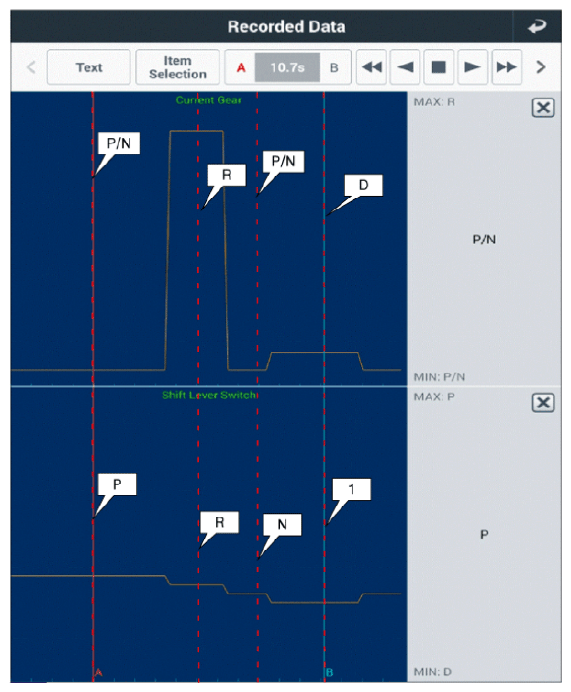

Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Refer to LIFT AND SUPPORT POINTS and lift vehicle with suitable lift. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition. Monitor selected parameters shown below in "Current Data" with KDS/GDS.	figure below.

Courtesy of KIA MOTORS AMERICA, INC.

Good

If the shift cable is poor alignment, it can cause a malfunction. Therefore check the alignment of the shift cable before replacing the inhibitor switch.

No Good
