Repair Procedures: Replacement

1. Remove the front seat assembly.

   (Refer to Front Seat - " FRONT SEAT ASSEMBLY  ")

2. Disconnect the front seat belt buckle connector wiring (A).

   Courtesy of KIA MOTORS AMERICA, INC.

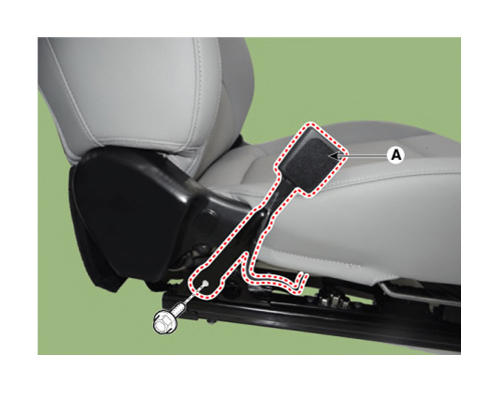

3. Remove the front seat belt buckle (A) loosening the mounting bolt.

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

Information

• Make sure that the connector is plugged in properly.
• Replace any damaged clips.
