System Inspection

■ Check the fuel filter for blockage

1. Remove the fuel pump and check filter debris and clogging of the fuel supply line.

■ Check the fuel level

1. If you run out of fuel significantly on ramp, it may be a factor of degradation of the fuel pressure.

■ Check low-pressure fuel supply line leakage and blockage.

1. Low-pressure fuel supply line damage and blockage can be a factor of the fuel pressure drop.

Inspection Condition	(+) Probe		(-) Probe		Reference
	Connector	Terminal	Connector	Terminal
Ignition "ON", engine "ON"	FPCV harness connector	2 (+)	Chassis ground	-	Figure 1 below
	FPCV harness connector	1 (-)	Chassis ground	-	Figure 2 below

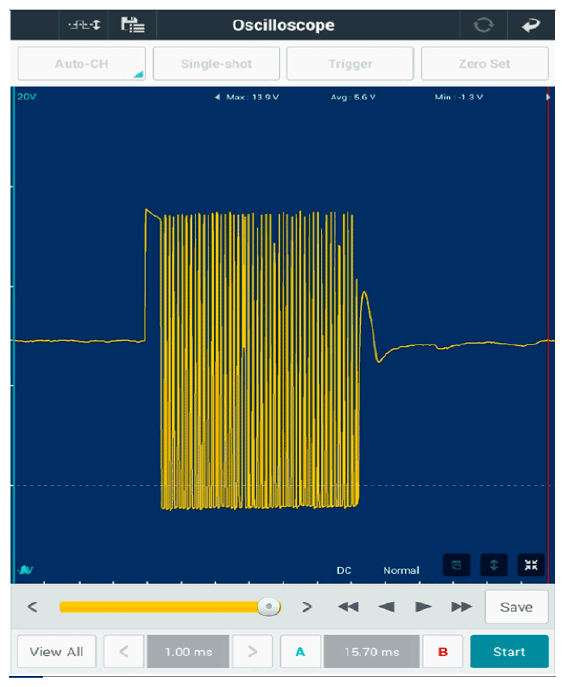

Figure 1 below

Courtesy of KIA MOTORS AMERICA, INC.

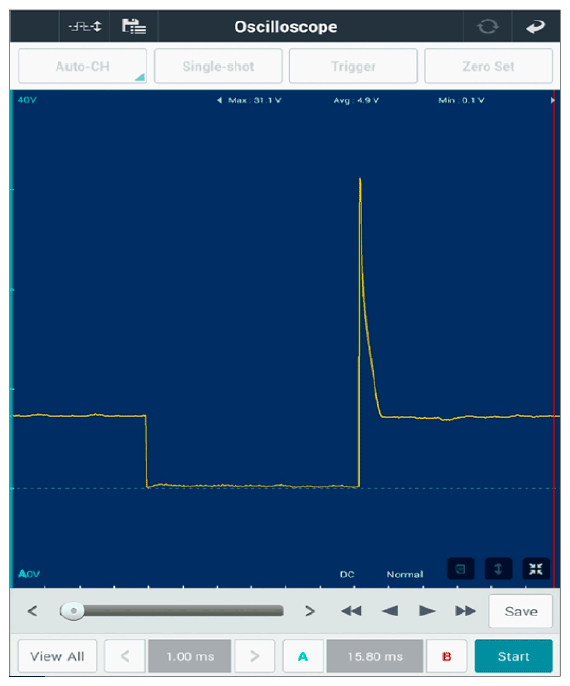

Figure 2 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "Verification of Repair " procedure.

No Good

• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the FPCV and go to "Verification of Repair " procedure.
