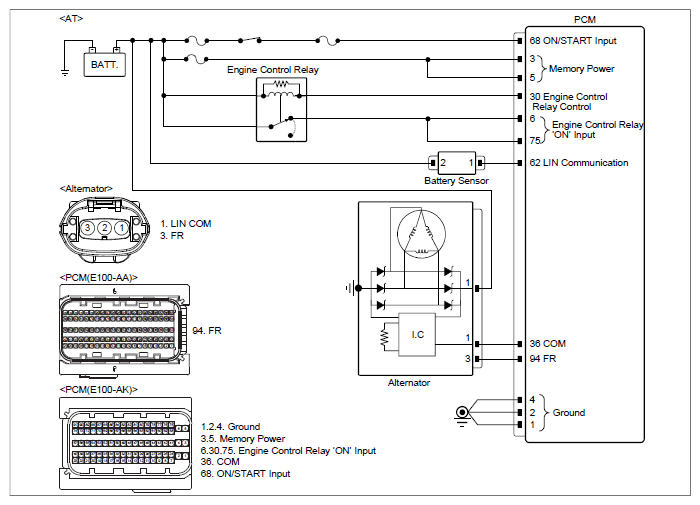

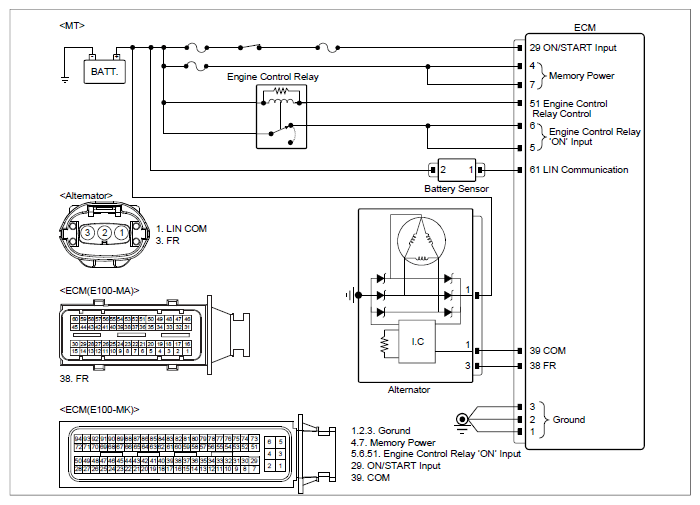

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect Alternator connector. Ignition "ON".	Alternator harness connector	1 (COM)	Chassis ground	-	Approx. 3.6V
Ignition "OFF". Disconnect Alternator connector. Ignition "ON".	Alternator harness connector	3 (FR)	Chassis ground	-	Approx. 12V

Good

No Good

Repair or replace as necessary and then, go to "Verification of Repair " procedure.
