Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
FRPS harness connector | 2 (Signal) | Chassis ground | - | figure 1 below. |
|
FPCV harness connector | 2 (+) | Chassis ground | - | figure 2 below. |
| FPCV harness connector | 1 (-) | Chassis ground | - | figure 3 below. | |

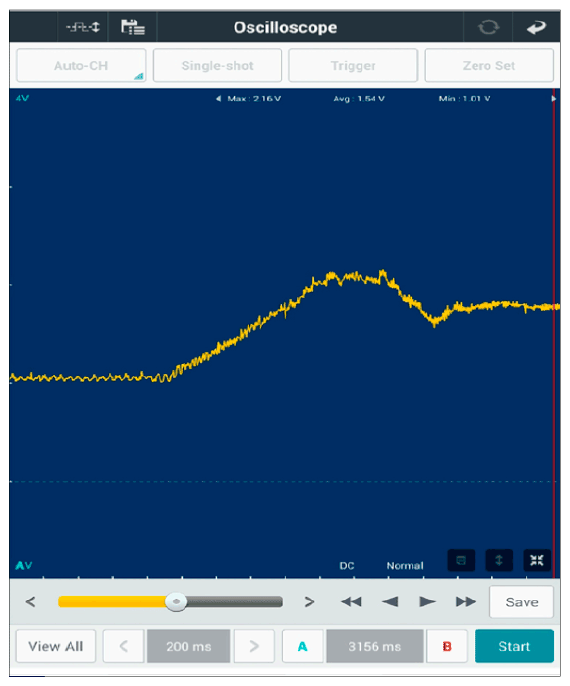

Figure 1 below

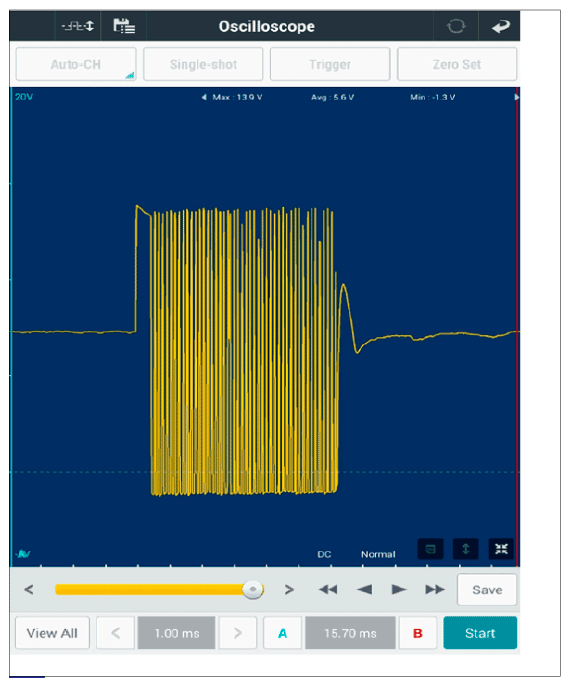

Figure 2 below

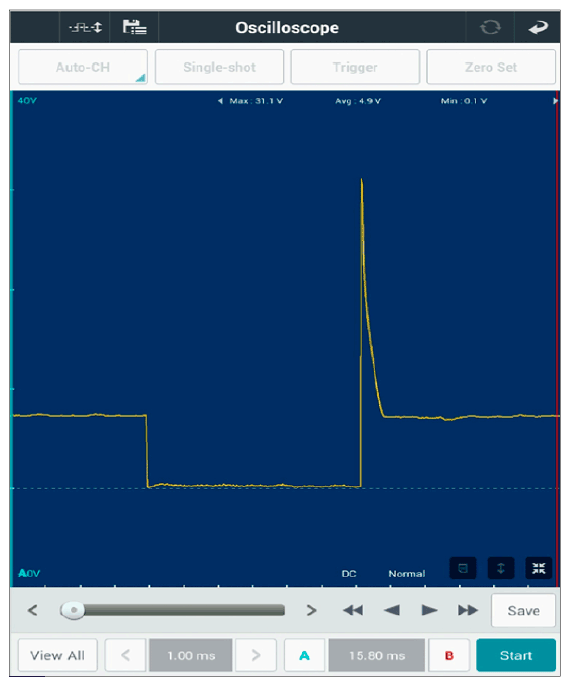

Figure 3 below
Good
- Go to "System Inspection " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the FRPS or FPCV and go to "Verification of Repair " procedure.
