Monitor KDS/GDS Data

Inspection Condition	Inspection Procedure	Reference

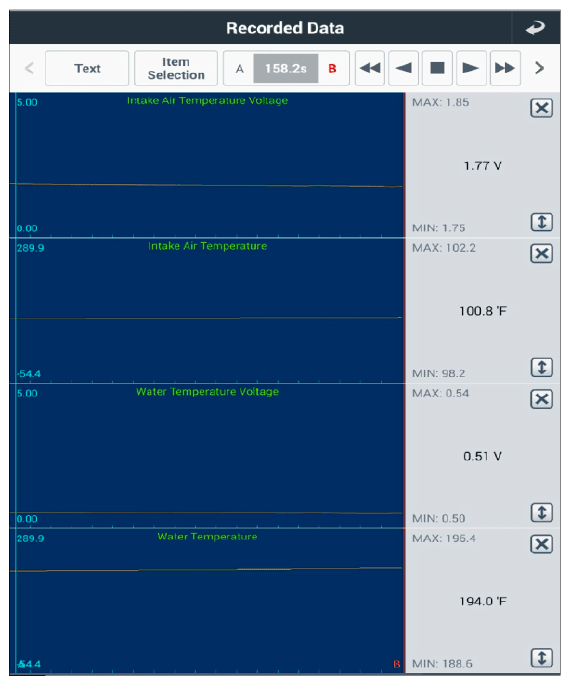

Ignition "ON", engine "ON".	Connect KDS/GDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS/GDS.	figures below.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good
