Component Inspection

Inspection Condition	Inspection Procedure	Reference

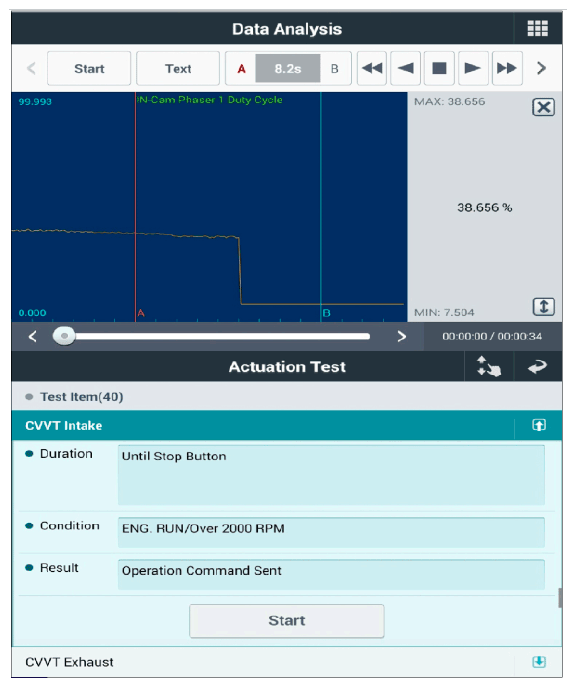

Ignition "ON", engine "OFF". Engine "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS/GDS.	figure below.

G12584744

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Verification of Repair " procedure.

No Good

Go to "Inspect OCV In - Bank1" procedure.

Inspect OCV In - Bank1
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect OCV In - Bank1 connector.	OCV In - Bank1 (Component Side)	2 (Power)	OCV In - Bank1 (Component Side)	1 (Control)	Approx. 6.9 to 7.9Ω at 20°C (68 °F)

Good

Go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OCV In - Bank1 and go to "Verification of Repair " procedure.
