Monitor KDS/GDS Data

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON"	SMK	13 (EMS COM)	Chassis ground	-	figure below.

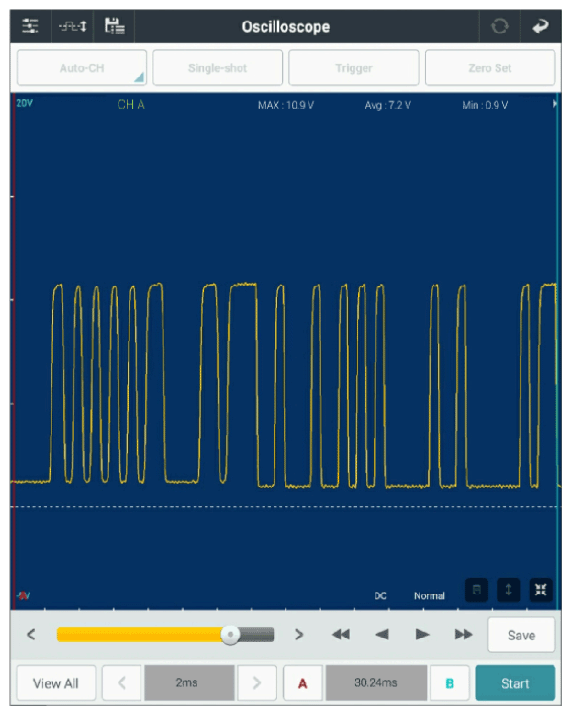

G12581005

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "SMK Status Information" procedure below.

SMK Status Information
Inspection Condition	Inspection Procedure	Reference
Ignition "ON", engine "OFF"	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	3 Figures below

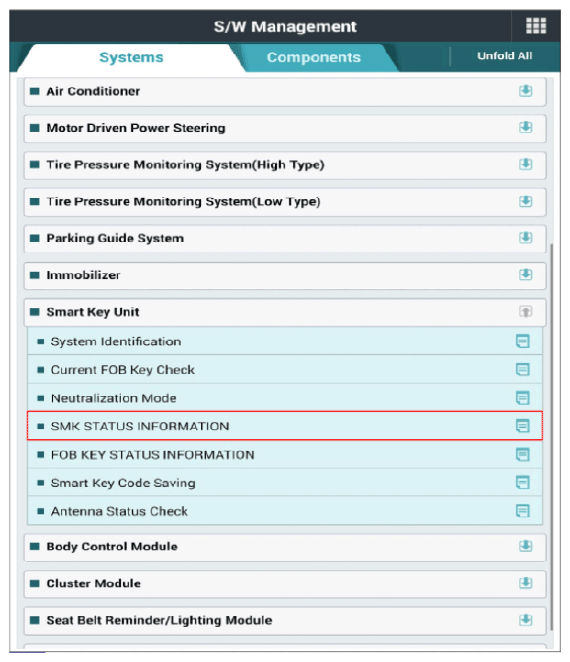

G12581006

Courtesy of KIA MOTORS AMERICA, INC.

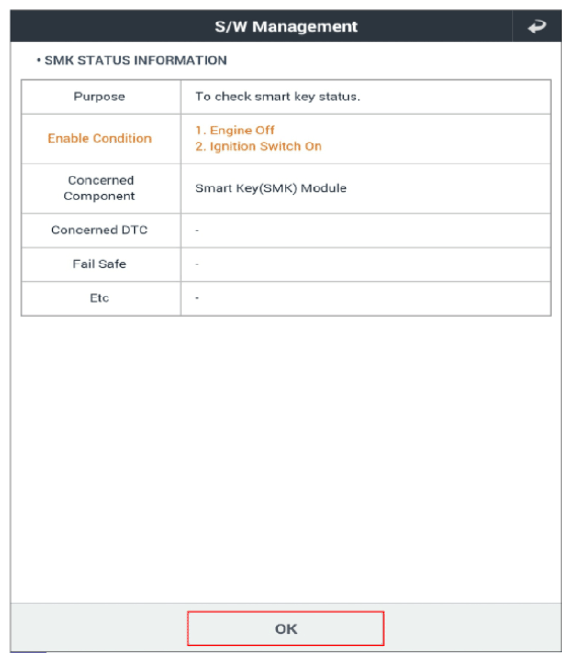

G12581007

Courtesy of KIA MOTORS AMERICA, INC.

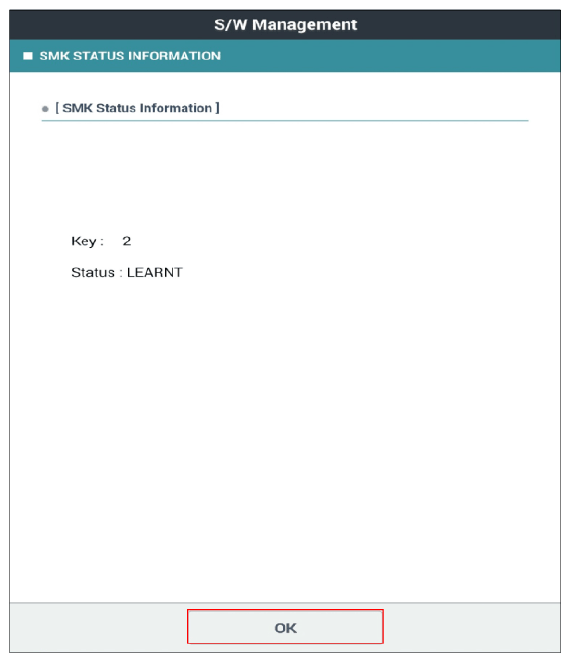

G12581008

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "Wiring Inspection " procedure.
