Home >> Kia >> 2019 >> Optima SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L (Except HEV) >> CVVT Oil Control Valve (OCV) [Bank-Exhaust >> Repair Procedures >> Removal

Repair Procedures: Removal

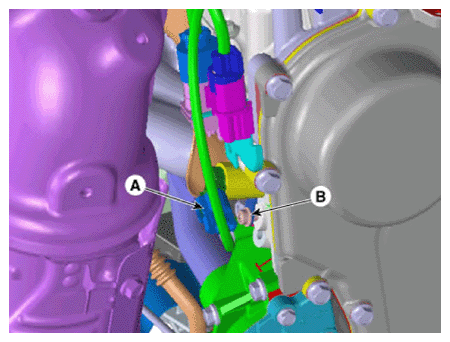

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

    [Bank 1/Exhaust]

G12922369Courtesy of KIA MOTORS AMERICA, INC.
