[Connector C]

WARNING: This page is about a different variant/trim than selected.
No. Description
1 Sensor Ground
2 In-Car Sensor Motor (-)
3 In-Car Sensor (+)
4 IGN2

[AVN Type]

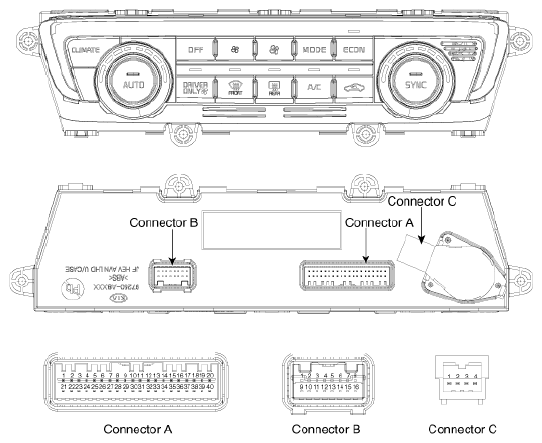

G13082746Courtesy of KIA MOTORS AMERICA, INC.

Connector Pin Function



No. Description
1 Sensor Ground
2 In-Car Sensor Motor (-)
3 In-Car Sensor (+)
4 IGN2
