Limp Home Mode
WARNING: This page is about a different variant/trim than selected.
- When the input for the brake is not made (AT specification)
Moving to the "START" when SSB is pressed longer than 10 seconds in ACC state.
- In case of communication problem between EMS and CAN (mainly, not recognizing the EMS state)
Moving to the state of "ENGINE RUN" from "START" based on the RPM input
- In case of short out of two SSB input line

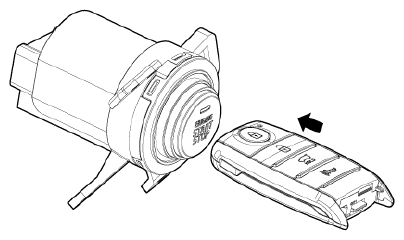

The electric power cycling is available when SSB is pressed twice within 10 seconds (SSB LIMP HOME PRESS)
The buzzer goes off when the button is pressed the first time.
The electric power cycling is available and buzzer stops when the button is pressed twice within 10 seconds.
