Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

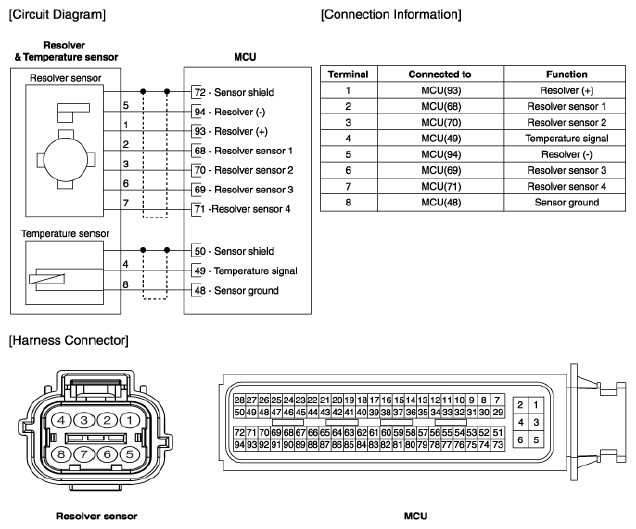

Resolver sensor (Hybrid Drive Motor)

G13083214Courtesy of KIA MOTORS AMERICA, INC.

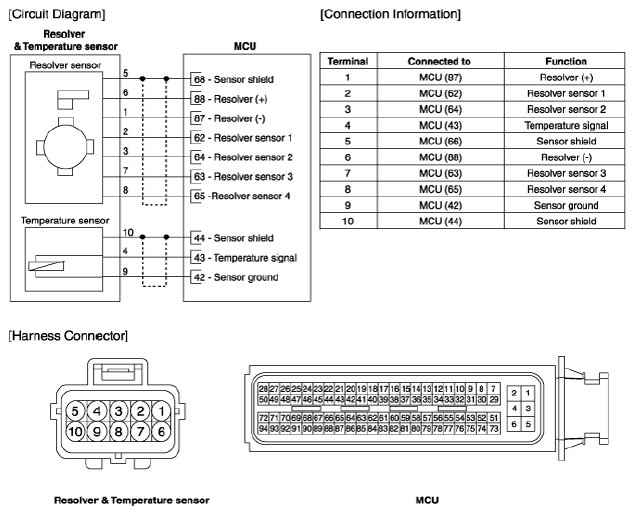

Resolver sensor (HSG)

G13083216Courtesy of KIA MOTORS AMERICA, INC.
